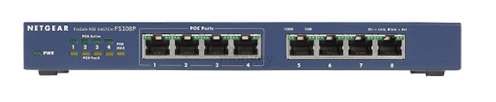

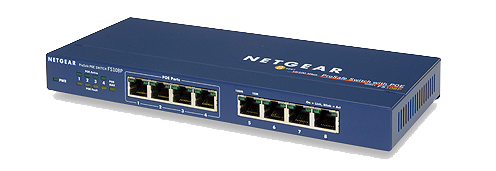

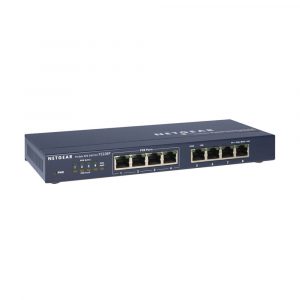

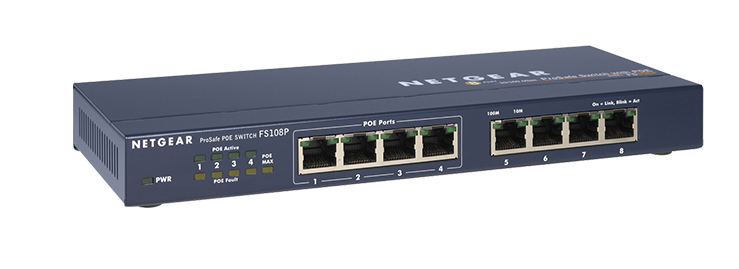

桌上型PoE交換器-FS108P
8個 10/100Mbps乙太網路口
4個連接埠支援PoE設備，無須設定
金屬外殼
有效提高散熱及穩定度
小型監控案場專用
無風扇設計寧靜不入塵
FS108P交換機提供了從一個網路節點利用5類乙太網線的電源和資料的傳輸。8埠快速乙太網埠能用於10/100Mps的連接，其中4個埠可以提供工業標準的802.3af電源。FS108P可自動測定PoE的需求，速度，雙工和使用AutoUplink™ 技術識別網路線連接的類型。
FS108P是對於想要經濟的使用PoE部署無線訪問點(AP）和基於IP的網路監控攝像頭的小型商業網絡的理想選擇。
| Features | FS108P |
|---|---|
| 連接埠 | •8 auto speed-sensing 10/100 RJ-45 ports |
| Network Protocol and Standards | • IEEE 802.3i 10BASE-T • IEEE 802.3u 100BASE-TX • IEEE 802.1p priority tags • IEEE 802.3x Flow Control • IEEE 802.3af DTE Power via MDI |
| 效能規格 | |
| •Forwarding modes | Store-and-forward |
| •Bandwidth | 1.6Gbps |
| •Network latency | Less than 20 μs for 64-byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission |
| •Buffer memory | 96KB embedded memory per unit |
| •Address database size | 1,000 media access control (MAC) addresses per system |
| •Addressing | 48-bit MAC address |
| •Mean time between failures (MTBF) | 927,000 hours |
| •Acoustic noise | 0dB (fanless) |
| LEDs提示燈 | |
| •系統 | 電源、PoE最大功率 |
| •每埠 | 連接, activity, 速度, PoE active, PoE fault |
| 電力規範 | |
| •Total power consumption | 56.1W maximum |
| •802.3af power consumption | 53W maximum (Ports 1 – 4) |
| •48V DC, 1.25A power output; plug is localized to country of sale | |
| 體積與重量 | |
| 尺寸(W x D x H) | 235 x 103 x 27mm (9.3 x 4.1 x 1.1in) |
| 重量 | 0.69kg (1.52lb) |
| 環境需求 | |
| •Operating temperature | 32˚ to 104°F (0˚ to 40°C) |
| •Storage temperature | -40° to 158°F (-40° to 70°C) |
| •Operating humidity | 90% maximum relative humidity, non-condensing |
| •Storage humidity | 95% maximum relative humidity, non-condensing |
| •Operating altitude | 10,000ft (3,000m) maximum |
| •Storage altitude | 10,000ft (3,000m) maximum |
| 電磁輻射干擾與耐受性 | •CE mark, commercial |
| •FCC Part 15 Class B | |
| •VCCI Class B | |
| •EN 55022 (CISPR 22), Class B | |
| •C-Tick, Class B | |
| 電磁干擾 | |
| •EN 55024 | |
| 安全認證 | •CE mark, commercial |
| •CE/LVD EN 60950 | |
| 保固 | 台灣公司貨享5年保固 |
如規格有異動，恕不另行通知。NETGEAR保有所有權利。
FS108P 規格
| Features | FS108P |
|---|---|
| 連接埠 | •8 auto speed-sensing 10/100 RJ-45 ports |
| Network Protocol and Standards | • IEEE 802.3i 10BASE-T • IEEE 802.3u 100BASE-TX • IEEE 802.1p priority tags • IEEE 802.3x Flow Control • IEEE 802.3af DTE Power via MDI |
| 效能規格 | |
| •Forwarding modes | Store-and-forward |
| •Bandwidth | 1.6Gbps |
| •Network latency | Less than 20 μs for 64-byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission |
| •Buffer memory | 96KB embedded memory per unit |
| •Address database size | 1,000 media access control (MAC) addresses per system |
| •Addressing | 48-bit MAC address |
| •Mean time between failures (MTBF) | 927,000 hours |
| •Acoustic noise | 0dB (fanless) |
| LEDs提示燈 | |
| •系統 | 電源、PoE最大功率 |
| •每埠 | 連接, activity, 速度, PoE active, PoE fault |
| 電力規範 | |
| •Total power consumption | 56.1W maximum |
| •802.3af power consumption | 53W maximum (Ports 1 – 4) |
| •48V DC, 1.25A power output; plug is localized to country of sale | |
| 體積與重量 | |
| 尺寸(W x D x H) | 235 x 103 x 27mm (9.3 x 4.1 x 1.1in) |
| 重量 | 0.69kg (1.52lb) |
| 環境需求 | |
| •Operating temperature | 32˚ to 104°F (0˚ to 40°C) |
| •Storage temperature | -40° to 158°F (-40° to 70°C) |
| •Operating humidity | 90% maximum relative humidity, non-condensing |
| •Storage humidity | 95% maximum relative humidity, non-condensing |
| •Operating altitude | 10,000ft (3,000m) maximum |
| •Storage altitude | 10,000ft (3,000m) maximum |
| 電磁輻射干擾與耐受性 | •CE mark, commercial |
| •FCC Part 15 Class B | |
| •VCCI Class B | |
| •EN 55022 (CISPR 22), Class B | |
| •C-Tick, Class B | |
| 電磁干擾 | |
| •EN 55024 | |
| 安全認證 | •CE mark, commercial |
| •CE/LVD EN 60950 | |
| 保固 | 台灣公司貨享5年保固 |
如規格有異動，恕不另行通知。NETGEAR保有所有權利。
型號 | PORTS | PoE Ports | PoE Budget | 保固 |
FS108P | 8 x FE | 4(PoE) | 53W | 5年 |
FS116P | 16 x FE | 8(PoE) | 55W | 5年 |
GS108LP | 8 x GbE | 8(PoE+) | 60W | 5年 |
GS116LP | 16 x GbE | 16(PoE+) | 76W | 5年 |
GS108PP | 8 x GbE | 8(PoE+) | 123W | 5年 |
GS116PP | 16 x GbE | 16(PoE+) | 183W | 5年 |
GS116 | 16 x GbE | - | - | 5年 |
GS105 | 5 x GbE | - | - | 5年 |
GS108 | 8 x GbE | - | - | 5年 |
GS108X | 8 x GbE + 1 x 10G SFP+ | - | - | 5年 |
GS108MX | 8 x GbE + 1 x 10GbE/Multi-Gig | - | - | 5年 |
GS105E | 5 x GbE | - | - | 5年 |
GS108E | 8 x GbE | - | - | 5年 |
GS108PE | 8 x GbE | 4(PoE) | 53W | 5年 |
GS116E | 16 x GbE | - | - | 5年 |
GS105PE | 5 x GbE | 2(PoE) | 接30W POE : 總瓦19W 接15W POE : 總瓦7.9W | 5年 |
GS108Tv3 | 8 x GbE | - | - | 5年 |
GS110TP | 8 x GbE + 2 SFP | 8(PoE) | 46W | 5年 |
GS110TPP | 10 x GbE | 8(PoE+) | 120W | 5年 |
XS508TM | 8 x 10GbE/Multi-Gig | - | - | 5年 |
XS516TM | 16 x 10GbE/Multi-Gig | - | - | 5年 |
