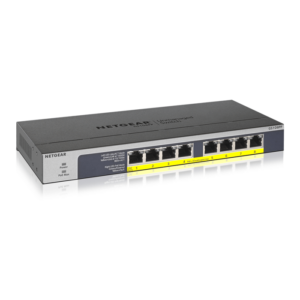

GS108LP
8埠PoE交換器
產品特點
1. 8個GbE PoE 連接埠
2. 總PoE供電瓦數可達 60W
3. 無風扇設計,安靜不入塵機架、桌面,都可以安裝
無線AP、監控攝影機、IP電話…等都可以連接運用
Features | GS108LP |
Gigabit Ethernet RJ-45 Copper ports (10M/100M/1G) - 1000BASE-T | 8 |
PoE/PoE+ ports | 8 PoE+ (60W PoE budget) |
Power Supply | External Input 54V 1.25A (67.5W) |
Power Supply Supported | External Input 54V 2.4A (130W) Input 54V 1.66A (90W) Input 54V 1.25A (67.5W) |
Form Factor | Desktop/Rackmount/Wall-Mount |
產品規格 | |
Gigabit Ports | 8 |
Max MAC entries | 4K |
Buffer Size | 192KB |
Energy Efficient Enthernet (IEEE 802.3az complaint) | Yes |
PoE規格 | |
802.3af | Ports 1-8 |
802.3at | Ports 1-8 |
PoE Max Power Per Port | Up to 15.4w for 802.3af and 30W for 802.3at |
Total PoE Power Budget | 60W |
Forwarding modes | Store-and-forward |
Bandwidth | 16Gbps |
Jumbo frame support | Yes |
Acoustic noise (ANSI-S10.12) | 0 (fanless) |
Mean Time Between Failures (MTBF) | 2,752,476 hours |
Quality of Service (QOS) | |
DSCP | Yes |
IEEE 802.1p COS | Yes |
Queue WRR Ratio | 1:3:5:7:8:10:12:15 Weighted Fair Queue (WFQ) |
LEDs提示燈 | |
Per port | Speed, Link, Activity, PoE |
Per device | Power Status, PoE Max |
網路通訊協定 | ·IEEE 802.3 Ethernet ·IEEE 802.3u 100BASE-TX ·IEEE 802.3ab 1000BASE-T ·IEEE 802.1p Class of Service ·IEEE 802.3az Energy Efficient Ethernet (EEE) ·IEEE 802.3i 10BASE-T Ethernet ·IEEE 802.3x Flow Control |
體積與重量 | |
Dimensions (W x D x H) | 236 x 102 x 27 mm 9.29 x 4.02 x 1.06 in |
Weight | 0.6 kg (1.32 lb) |
總用電量(以全埠連接,最高線速交換速率,滿PoE負載為前提) | |
Power Supply | External Input 54V 1.25A (67.5W) |
Power Supply Supported | External Input 54V 2.4A (130W) Input 54V 1.66A (90W) Input 54V 1.25A (67.5W) |
Max power (worst case, all ports used, line-rate traffic) (Watts) | 67.5W |
Min power (link-down standby) (Watts) | 1.08W |
Heat Dissipation (max and min) (BTU/hr) | 230.85 BTU/ 3.69 BTU |
Energy Efficient Ethernet (EEE) IEEE 802.3az | Yes |
Short cable power reduction | Yes |
Auto power-down | Yes |
Fan(s) | 0 (fanless) |
環境需求 | |
運作環境 | |
Operating Temperature | 0° to 50°C (32° to 122°F) |
Humidity | 90% maximum relative humidity (RH), non-condensing |
Altitude | 10,000 ft (3,000 m) maximum |
運作環境 | |
Storage Temperature | –20° to 70°C (– 4° to 158°F) |
Humidity (relative) | 95% maximum relative humidity (RH), non-condensing |
Altitude | 10,000 ft (3,000 m) maximum |
電磁輻射干擾與耐受性 | |
Certifications | 47 CFR FCC Part 15, SubpartB, Class A ICES-003:2016 Issue 6, Class A ANSI C63.4:2014 55032:2012+AC:2013, Class A EN 55024:2010 EN 61000-3-2:2014, Class A EN 61000-3-3:2013 AS/NZS CISPR 32:2015, Class A VCCI-CISPR 32:2016, Class A KN 35 CNS 13438 Electromagnetic Compliance Class A |
安全認證 | |
Certifications | CB. IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013 UL/cUL Listed; UL60950-1, 2nd Ed. 2014; CAN/CSA C22.2 No. 60950-1-07, 2nd Ed.2014 EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 AS/NZS 60950.1:2015 KN 32 CNS 14336-1 |
保固 | 台灣公司貨享5年保固 |
如規格有異動,恕不另行通知。NETGEAR保有所有權利。
GS108LP 規格
Features | GS108LP |
Gigabit Ethernet RJ-45 Copper ports (10M/100M/1G) - 1000BASE-T | 8 |
PoE/PoE+ ports | 8 PoE+ (60W PoE budget) |
Power Supply | External Input 54V 1.25A (67.5W) |
Power Supply Supported | External Input 54V 2.4A (130W) Input 54V 1.66A (90W) Input 54V 1.25A (67.5W) |
Form Factor | Desktop/Rackmount/Wall-Mount |
產品規格 | |
Gigabit Ports | 8 |
Max MAC entries | 4K |
Buffer Size | 192KB |
Energy Efficient Enthernet (IEEE 802.3az complaint) | Yes |
PoE規格 | |
802.3af | Ports 1-8 |
802.3at | Ports 1-8 |
PoE Max Power Per Port | Up to 15.4w for 802.3af and 30W for 802.3at |
Total PoE Power Budget | 60W |
Forwarding modes | Store-and-forward |
Bandwidth | 16Gbps |
Jumbo frame support | Yes |
Acoustic noise (ANSI-S10.12) | 0 (fanless) |
Mean Time Between Failures (MTBF) | 2,752,476 hours |
Quality of Service (QOS) | |
DSCP | Yes |
IEEE 802.1p COS | Yes |
Queue WRR Ratio | 1:3:5:7:8:10:12:15 Weighted Fair Queue (WFQ) |
LEDs提示燈 | |
Per port | Speed, Link, Activity, PoE |
Per device | Power Status, PoE Max |
網路通訊協定 | ·IEEE 802.3 Ethernet ·IEEE 802.3u 100BASE-TX ·IEEE 802.3ab 1000BASE-T ·IEEE 802.1p Class of Service ·IEEE 802.3az Energy Efficient Ethernet (EEE) ·IEEE 802.3i 10BASE-T Ethernet ·IEEE 802.3x Flow Control |
體積與重量 | |
Dimensions (W x D x H) | 236 x 102 x 27 mm 9.29 x 4.02 x 1.06 in |
Weight | 0.6 kg (1.32 lb) |
總用電量(以全埠連接,最高線速交換速率,滿PoE負載為前提) | |
Power Supply | External Input 54V 1.25A (67.5W) |
Power Supply Supported | External Input 54V 2.4A (130W) Input 54V 1.66A (90W) Input 54V 1.25A (67.5W) |
Max power (worst case, all ports used, line-rate traffic) (Watts) | 67.5W |
Min power (link-down standby) (Watts) | 1.08W |
Heat Dissipation (max and min) (BTU/hr) | 230.85 BTU/ 3.69 BTU |
Energy Efficient Ethernet (EEE) IEEE 802.3az | Yes |
Short cable power reduction | Yes |
Auto power-down | Yes |
Fan(s) | 0 (fanless) |
環境需求 | |
運作環境 | |
Operating Temperature | 0° to 50°C (32° to 122°F) |
Humidity | 90% maximum relative humidity (RH), non-condensing |
Altitude | 10,000 ft (3,000 m) maximum |
運作環境 | |
Storage Temperature | –20° to 70°C (– 4° to 158°F) |
Humidity (relative) | 95% maximum relative humidity (RH), non-condensing |
Altitude | 10,000 ft (3,000 m) maximum |
電磁輻射干擾與耐受性 | |
Certifications | 47 CFR FCC Part 15, SubpartB, Class A ICES-003:2016 Issue 6, Class A ANSI C63.4:2014 55032:2012+AC:2013, Class A EN 55024:2010 EN 61000-3-2:2014, Class A EN 61000-3-3:2013 AS/NZS CISPR 32:2015, Class A VCCI-CISPR 32:2016, Class A KN 35 CNS 13438 Electromagnetic Compliance Class A |
安全認證 | |
Certifications | CB. IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013 UL/cUL Listed; UL60950-1, 2nd Ed. 2014; CAN/CSA C22.2 No. 60950-1-07, 2nd Ed.2014 EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 AS/NZS 60950.1:2015 KN 32 CNS 14336-1 |
保固 | 台灣公司貨享5年保固 |
型號 | PORTS | PoE Ports | PoE Budget | 保固 |
FS108P | 8 x FE | 4(PoE) | 53W | 5年 |
FS116P | 16 x FE | 8(PoE) | 55W | 5年 |
GS108LP | 8 x GbE | 8(PoE+) | 60W | 5年 |
GS116LP | 16 x GbE | 16(PoE+) | 76W | 5年 |
GS108PP | 8 x GbE | 8(PoE+) | 123W | 5年 |
GS116PP | 16 x GbE | 16(PoE+) | 183W | 5年 |
GS116 | 16 x GbE | - | - | 5年 |
GS105 | 5 x GbE | - | - | 5年 |
GS108 | 8 x GbE | - | - | 5年 |
GS108X | 8 x GbE + 1 x 10G SFP+ | - | - | 5年 |
GS108MX | 8 x GbE + 1 x 10GbE/Multi-Gig | - | - | 5年 |
GS105E | 5 x GbE | - | - | 5年 |
GS108E | 8 x GbE | - | - | 5年 |
GS108PE | 8 x GbE | 4(PoE) | 53W | 5年 |
GS116E | 16 x GbE | - | - | 5年 |
GS105PE | 5 x GbE | 2(PoE) | 接30W POE : 總瓦19W 接15W POE : 總瓦7.9W | 5年 |
GS108Tv3 | 8 x GbE | - | - | 5年 |
GS110TP | 8 x GbE + 2 SFP | 8(PoE) | 46W | 5年 |
GS110TPP | 10 x GbE | 8(PoE+) | 120W | 5年 |
XS508TM | 8 x 10GbE/Multi-Gig | - | - | 5年 |
XS516TM | 16 x 10GbE/Multi-Gig | - | - | 5年 |
