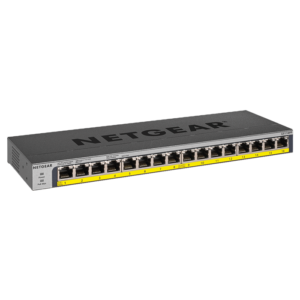

GS116PP
16埠PoE/PoE+交換器
產品特點
1. 16個GbE PoE/PoE+連接埠(最多可同時連接6個PoE+設備)
2. 總PoE供電瓦數可達 183W
3. 無風扇設計,安靜不入塵機架、桌面，都可以安裝
無線AP、監控攝影機、IP電話…等都可以連接運用
| Gigabit Ethernet RJ-45 Copper ports (10M/100M/1G) - 1000BASE-T | 16 |
| PoE/PoE+ ports | 16 PoE+ (183W PoE budget) |
| Power Supply | External Input 54V 3.7A (200W) |
| Power Supply Supported | External Input 54V 3.7A (200W) Input 54V 2.4A (130W) Input 54V 1.66A (90W) |
| Form Factor | Desktop/Rackmount/Wall-Mount |
| 產品規格 | |
| Gigabit Ports | 16 |
| Max MAC entries | 4K |
| Buffer Size | 1MB |
| Energy Efficient Enthernet (IEEE 802.3az complaint) | Yes |
| PoE規格 | |
| 802.3af | Ports 1-16 |
| 802.3at | Ports 1-16 |
| PoE Max Power Per Port | Up to 15.4w for 802.3af and 30W for 802.3at |
| Total PoE Power Budget | 183W |
| Forwarding modes | Store-and-forward |
| Bandwidth | 32Gbps |
| Jumbo frame support | Yes |
| Acoustic noise (ANSI-S10.12) | 0 (fanless) |
| Mean Time Between Failures (MTBF) | 2,088,514 hours |
| Quality of Service (QOS) | |
| DSCP | Yes |
| IEEE 802.1p COS | Yes |
| Queue WRR Ratio | 1:3:5:7:8:10:12:15 Weighted Fair Queue (WFQ) |
| LEDs提示燈 | |
| Per port | Speed, Link, Activity, PoE |
| Per device | Power Status, PoE Max |
| 網路通訊協定 | ·IEEE 802.3 Ethernet ·IEEE 802.3u 100BASE-TX ·IEEE 802.3ab 1000BASE-T ·IEEE 802.1p Class of Service ·IEEE 802.3az Energy Efficient Ethernet (EEE) ·IEEE 802.3i 10BASE-T Ethernet ·IEEE 802.3x Flow Control |
| 體積與重量 | |
| Dimensions (W x D x H) | 286 x 102 x 27 mm 11.26 x 4.02 x 1.06 in |
| Weight | 0.88 kg (1.94 lb) |
| 總用電量(以全埠連接,最高線速交換速率,滿PoE負載為前提) | |
| Power Supply | External Input 54V 3.7A (200W) |
| Power Supply Supported | External Input 54V 3.7A (200W) Input 54V 2.4A (130W) Input 54V 1.66A (90W) |
| Max power (worst case, all ports used, line-rate traffic) (Watts) | 200W |
| Min power (link-down standby) (Watts) | 2.68W |
| Heat Dissipation (max and min) (BTU/hr) | 680.58 BTU/ 9.14 BTU |
| Energy Efficient Ethernet (EEE) IEEE 802.3az | Yes |
| Short cable power reduction | Yes |
| Auto power-down | Yes |
| Fan(s) | 0 (fanless) |
| 環境需求 | |
| 運作環境 | |
| Operating Temperature | 0° to 50°C (32° to 122°F) |
| Humidity | 90% maximum relative humidity (RH), non-condensing |
| Altitude | 10,000 ft (3,000 m) maximum |
| 運作環境 | |
| Storage Temperature | –20° to 70°C (– 4° to 158°F) |
| Humidity (relative) | 95% maximum relative humidity (RH), non-condensing |
| Altitude | 10,000 ft (3,000 m) maximum |
| 電磁輻射干擾與耐受性 | GS116PP |
| Certifications | 47 CFR FCC Part 15, SubpartB, Class A ICES-003:2016 Issue 6, Class A ANSI C63.4:2014 55032:2012+AC:2013, Class A EN 55024:2010 EN 61000-3-2:2014, Class A EN 61000-3-3:2013 AS/NZS CISPR 32:2015, Class A VCCI-CISPR 32:2016, Class A KN 35 CNS 13438 Electromagnetic Compliance Class A |
| 安全認證 | |
| Certifications | CB. IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013 UL/cUL Listed; UL60950-1, 2nd Ed. 2014; CAN/CSA C22.2 No. 60950-1-07, 2nd Ed.2014 EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 AS/NZS 60950.1:2015 KN 32 CNS 14336-1 |
| 保固 | 台灣公司貨享5年保固 |
如規格有異動，恕不另行通知。NETGEAR保有所有權利。
