技術規格

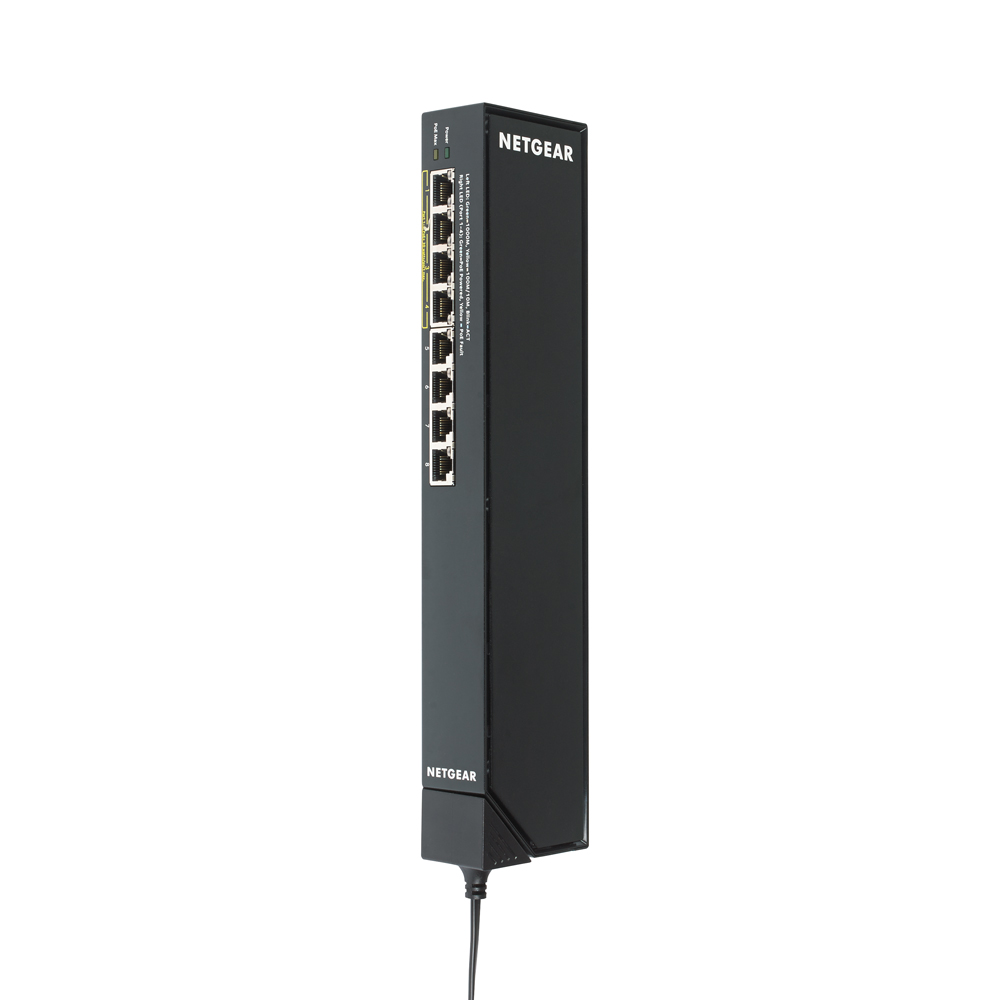

Features | GSS108EPP |
100M/1G/10G RJ-45 copper ports | 8 |
PoE/PoE+ ports | 4 PoE+ (47W PoE Budget) |
USB charging ports | N/A |
效能規格 | |
Packet buffer memory (Dynamically shared across only used ports) | 192KB |
Forwarding modes | Store-and-forward |
Bandwidth (full-duplex fabric) | 16Gbps |
Priority queues | 4 |
Priority queuing | Weighted Round Robin (WRR) |
MAC address database size (48-bit MAC addresses) | 4K |
Multicast groups | 128 |
Number of VLANs | 64 |
Packet forwarding rate (64 byte packet size) (Mfps or Mpps) | 11.9Mfps |
Speed/Latency | 10Mbps: < 77µs 100Mbps: <8.9µs 1000Mbps: <2.6µs |
Jumbo frame support | Up to 9K packet size |
Acoustic noise level @ 25° C (dBA) (ANSI-S10.12) | 0dB (Fanless) |
Mean Time Between Failures (MTBF) @ 25° C | 1,494,913 hours |
L2 SERVICES - VLANS | |
IEEE 802.1Q VLAN tagging | Yes |
Port-based VLANs (physical) | Yes |
L2 SERVICES - AVAILABILITY | |
Broadcast, multicast, unknown unicast storm control | Yes |
Link Aggregation/Port Trunking (Static Manual LAGs only) | 2 LAGs with max 4 members in each LAG |
IEEE 802.3x (full duplex and flow control) | Yes |
L2 SERVICES - MULTICAST FILTERING | |
IGMP snooping (v1, v2 and v3) | Yes |
IGMP snooping queries | No |
Block unknown multicast | Yes |
Static multicast router port | No |
L3 SERVICES - DHCP | |
DHCP client | Yes |
LINK AGGREGATION | |
Static Manual LAGs (Port Trunking) | Yes |
# of Static LAGs/# of members in each LAG | 2 LAGs with max 4 members in each LAG |
NETWORK MONITORING AND DISCOVERY SERVICES | |
Broadcast, multicast, unknown unicast storm control | Yes |
DoS attacks prevention | Yes |
QUALITY OF SERVICE (QOS) | |
Port-based rate limiting | Ingress and egress |
Port-based QoS | Yes |
IEEE 802.1p COS | Yes |
IPv4 DSCP | Yes |
IPv4 ToS | Yes |
TCP/UDP-based | No |
Weighted Round Robin (WRR) | Yes |
Strict Priority queue technology | No |
Voice VLAN | Yes, based on OUI bytes in the phone source MAC address |
網路通訊協定 | • IEEE 802.3 Ethernet • IEEE 802.3x Full-Duplex Flow Control • IEEE 802.3u 100BASE-TX • IEEE 802.1p Class of Service • IEEE 802.3ab 1000BASE-T • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.1Q VLAN Tagging • IEEE 802.3af Power-Over-Ethernet (PoE) • IEEE 802.3at Power-Over-Ethernet (PoE+) • IEEE 802.3ad Port Trunking (Static Manual LAG Only) |
管理 | |
Password management | Yes |
Multiple Language GUI | No |
ProSAFE Plus Configuration Utility (PCU) for multi-switch management | Yes |
Firmware upgrade | TFTP (Plus Utility) / HTTP (Web GUI) |
Config file transfers (backup, restore) | Plus Utility or Web GUI |
Firmware upgrade through Plus Utility (TFTP) | Yes |
Config download (to switch) through Plus Utility | Yes |
Config upload (to server) through Plus Utility | Yes |
Firmware upgrade through web GUI (HTTP) | Yes |
Config download (to switch) through web GUI (HTTP) | Yes |
Config upload (to server) through web GUI (HTTP) | Yes |
Cable test utility | Yes |
Port mirroring | Yes |
Many-to-one port mirroring | 1 |
Mirroring port can still work normally? | Yes |
LEDs提示燈 | |
Per port | Speed, Link, Activity (all) PoE Status (Ports 1~4) |
Per device | Power, PoE Max |
POE介面 | |
Number of PoE/PoE+ ports | 4 PoE+ (802.3at) |
Total PoE power budget (watts) | 47W |
體積與重量 | |
Dimensions (W x D x H) | 305 x 65 x 35mm (12 x 2.6 x 1.4in) |
Weight | 3.20kg (7.07lb) |
功耗 | |
Power Supply | Fixed internal PSU, 100-240VAC, 50-60Hz, 1.4A max Power cord localized to country of sale |
Max power (worst case, all ports used, line-rate traffic) (Watts) | 5.3W (no PoE) 57.4W (with PoE max) |
Min power (link-down standby) (Watts) | 1.65W |
Heat Dissipation (max and min) (BTU/hr) | Max: 195.79 BTU/hr Min: 5.63 BTU/hr |
Energy Efficient Ethernet (EEE) IEEE 802.3az | Yes |
Short cable power reduction | Yes |
Auto power-down | Yes |
Fan(s) | None (Fanless) |
環境需求 | |
運作環境 | |
Operating Temperature | ‘0° to 40°C (32° to 104°F) |
Humidity | 90% maximum relative humidity (RH), non-condensing |
Altitude | 10,000ft (3,000m) maximum |
儲藏環境 | |
Storage Temperature | –20° to 70°C (– 4° to 158°F) |
Humidity (relative) | 95% maximum relative humidity (RH), non-condensing |
Altitude | 10,000ft (3,000m) maximum |
電磁輻射干擾與耐受性 | |
Certifications | 47 CFR FCC Part 15, SubpartB, ClassB ICES-003:2016 Issue 6, ClassB ANSI C63.4:2014 EN 55022:2010 + AC:2011, Class A EN 55024:2010 EN 61000-3-2:2014, Class A EN 6100-3-3:2013 AS/NZS CISPR 22:2009 + A1:2010, Class B VCCI V-3/2015.04, Class B V-4/2012.4 Russia EAC mark Korea KC mark CNS 13438 |
Electromagnetic Compliance (Class A or B) | Class B |
安全認證 | |
Certifications | CB mark, commercial IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013 UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07 EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013 AS/NZS 60950.1:2015 Russia EAC mark |
保固 | 台灣公司貨享5年保固 |
如規格有異動,恕不另行通知。NETGEAR保有所有權利。
技術規格
Features | GSS108EPP |
100M/1G/10G RJ-45 copper ports | 8 |
PoE/PoE+ ports | 4 PoE+ (47W PoE Budget) |
USB charging ports | N/A |
效能規格 | |
Packet buffer memory (Dynamically shared across only used ports) | 192KB |
Forwarding modes | Store-and-forward |
Bandwidth (full-duplex fabric) | 16Gbps |
Priority queues | 4 |
Priority queuing | Weighted Round Robin (WRR) |
MAC address database size (48-bit MAC addresses) | 4K |
Multicast groups | 128 |
Number of VLANs | 64 |
Packet forwarding rate (64 byte packet size) (Mfps or Mpps) | 11.9Mfps |
Speed/Latency | 10Mbps: < 77µs 100Mbps: <8.9µs 1000Mbps: <2.6µs |
Jumbo frame support | Up to 9K packet size |
Acoustic noise level @ 25° C (dBA) (ANSI-S10.12) | 0dB (Fanless) |
Mean Time Between Failures (MTBF) @ 25° C | 1,494,913 hours |
L2 SERVICES - VLANS | |
IEEE 802.1Q VLAN tagging | Yes |
Port-based VLANs (physical) | Yes |
L2 SERVICES - AVAILABILITY | |
Broadcast, multicast, unknown unicast storm control | Yes |
Link Aggregation/Port Trunking (Static Manual LAGs only) | 2 LAGs with max 4 members in each LAG |
IEEE 802.3x (full duplex and flow control) | Yes |
L2 SERVICES - MULTICAST FILTERING | |
IGMP snooping (v1, v2 and v3) | Yes |
IGMP snooping queries | No |
Block unknown multicast | Yes |
Static multicast router port | No |
L3 SERVICES - DHCP | |
DHCP client | Yes |
LINK AGGREGATION | |
Static Manual LAGs (Port Trunking) | Yes |
# of Static LAGs/# of members in each LAG | 2 LAGs with max 4 members in each LAG |
NETWORK MONITORING AND DISCOVERY SERVICES | |
Broadcast, multicast, unknown unicast storm control | Yes |
DoS attacks prevention | Yes |
QUALITY OF SERVICE (QOS) | |
Port-based rate limiting | Ingress and egress |
Port-based QoS | Yes |
IEEE 802.1p COS | Yes |
IPv4 DSCP | Yes |
IPv4 ToS | Yes |
TCP/UDP-based | No |
Weighted Round Robin (WRR) | Yes |
Strict Priority queue technology | No |
Voice VLAN | Yes, based on OUI bytes in the phone source MAC address |
網路通訊協定 | • IEEE 802.3 Ethernet • IEEE 802.3x Full-Duplex Flow Control • IEEE 802.3u 100BASE-TX • IEEE 802.1p Class of Service • IEEE 802.3ab 1000BASE-T • IEEE 802.3az Energy Efficient Ethernet (EEE) • IEEE 802.1Q VLAN Tagging • IEEE 802.3af Power-Over-Ethernet (PoE) • IEEE 802.3at Power-Over-Ethernet (PoE+) • IEEE 802.3ad Port Trunking (Static Manual LAG Only) |
管理 | |
Password management | Yes |
Multiple Language GUI | No |
ProSAFE Plus Configuration Utility (PCU) for multi-switch management | Yes |
Firmware upgrade | TFTP (Plus Utility) / HTTP (Web GUI) |
Config file transfers (backup, restore) | Plus Utility or Web GUI |
Firmware upgrade through Plus Utility (TFTP) | Yes |
Config download (to switch) through Plus Utility | Yes |
Config upload (to server) through Plus Utility | Yes |
Firmware upgrade through web GUI (HTTP) | Yes |
Config download (to switch) through web GUI (HTTP) | Yes |
Config upload (to server) through web GUI (HTTP) | Yes |
Cable test utility | Yes |
Port mirroring | Yes |
Many-to-one port mirroring | 1 |
Mirroring port can still work normally? | Yes |
LEDs提示燈 | |
Per port | Speed, Link, Activity (all) PoE Status (Ports 1~4) |
Per device | Power, PoE Max |
POE介面 | |
Number of PoE/PoE+ ports | 4 PoE+ (802.3at) |
Total PoE power budget (watts) | 47W |
體積與重量 | |
Dimensions (W x D x H) | 305 x 65 x 35mm (12 x 2.6 x 1.4in) |
Weight | 3.20kg (7.07lb) |
功耗 | |
Power Supply | Fixed internal PSU, 100-240VAC, 50-60Hz, 1.4A max Power cord localized to country of sale |
Max power (worst case, all ports used, line-rate traffic) (Watts) | 5.3W (no PoE) 57.4W (with PoE max) |
Min power (link-down standby) (Watts) | 1.65W |
Heat Dissipation (max and min) (BTU/hr) | Max: 195.79 BTU/hr Min: 5.63 BTU/hr |
Energy Efficient Ethernet (EEE) IEEE 802.3az | Yes |
Short cable power reduction | Yes |
Auto power-down | Yes |
Fan(s) | None (Fanless) |
環境需求 | |
運作環境 | |
Operating Temperature | ‘0° to 40°C (32° to 104°F) |
Humidity | 90% maximum relative humidity (RH), non-condensing |
Altitude | 10,000ft (3,000m) maximum |
儲藏環境 | |
Storage Temperature | –20° to 70°C (– 4° to 158°F) |
Humidity (relative) | 95% maximum relative humidity (RH), non-condensing |
Altitude | 10,000ft (3,000m) maximum |
電磁輻射干擾與耐受性 | |
Certifications | 47 CFR FCC Part 15, SubpartB, ClassB ICES-003:2016 Issue 6, ClassB ANSI C63.4:2014 EN 55022:2010 + AC:2011, Class A EN 55024:2010 EN 61000-3-2:2014, Class A EN 6100-3-3:2013 AS/NZS CISPR 22:2009 + A1:2010, Class B VCCI V-3/2015.04, Class B V-4/2012.4 Russia EAC mark Korea KC mark CNS 13438 |
Electromagnetic Compliance (Class A or B) | Class B |
安全認證 | |
Certifications | CB mark, commercial IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013 UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07 EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013 AS/NZS 60950.1:2015 Russia EAC mark |
保固 | 台灣公司貨享5年保固 |
如規格有異動,恕不另行通知。NETGEAR保有所有權利。
型號 | PORTS | PoE Ports | PoE Budget | 保固 |
FS108P | 8 x FE | 4(PoE) | 53W | 5年 |
FS116P | 16 x FE | 8(PoE) | 55W | 5年 |
GS108LP | 8 x FE | 8(PoE+) | 60W | 5年 |
GS116LP | 16 x FE | 16(PoE+) | 76W | 5年 |
GS108PP | 8 x FE | 8(PoE+) | 123W | 5年 |
GS116PP | 16 x FE | 16(PoE+) | 183W | 5年 |
GS116 | 16 x GbE | - | - | 5年 |
GS105 | 5 x GbE | - | - | 5年 |
GS108 | 8 x GbE | - | - | 5年 |
GS108X | 8 x GbE + 1 x 10G SFP+ | - | - | 5年 |
GS105E | 5 x GbE | - | - | 5年 |
GS108E | 8 x GbE | - | - | 5年 |
GS108PE | 8 x GbE | 4(PoE) | 53W | 5年 |
GS116E | 16 x GbE | - | - | 5年 |
GS105PE | 5 x GbE | 2(PoE) | 接30W POE : 總瓦19W 接15W POE : 總瓦7.9W | 5年 |
GS108Tv3 | 8 x GbE | - | - | 5年 |
GS110TP | 8 x GbE + 2 SFP | 8(PoE) | 46W | 5年 |
GS110TPP | 10 x GbE | 8(PoE+) | 120W | 5年 |
XS508TM | 8 x 10GbE/Multi-Gig | - | - | 5年 |
XS516TM | 16 x 10GbE/Multi-Gig | - | - | 5年 |
