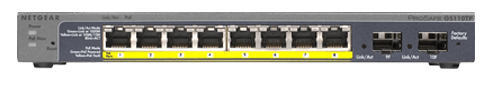

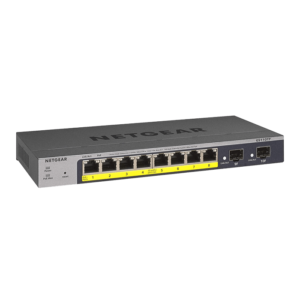

智能網管交換器-GS110TP
8個10/100/1000 Mbps乙太網路口
2個光纖網路口支援IEEE 802.3 at PoE+供電
金屬外殼
有效提高散熱及穩定度
小體積設計，隨插即用
無風扇設計寧靜不入塵
| Features | GS110TPv3 |
| Gigabit Ethernet RJ-45 Copper ports (10M/100M/1G) - 1000BASE-T | 8 |
| PoE/PoE+ ports | 8 PoE+ (55W PoE budget) |
| Gigabit SFP (fiber) ports (100M/1G) - 1000BASE-X | 2 (dedicated) |
| Power Supply | External DC 54V 1.25A |
| Kensington Lock | Yes (rear) |
| LEDs | |
| Front (port side) (per device) | Power, PoE Max |
| Front (port side) (per port) | Speed/Link/Activity (left), PoE Power (right) |
| UNIFIED NETWORK MANAGEMENT (DISCOVERY, SETUP, MONITORING, AND MANAGEMENT) THROUGH NETGEAR INSIGHT CLOUD MANAGEMENT | |
| Discovery, setup, monitoring and management | NETGEAR Insight mobile app on phone or tablet; Insight Cloud Portal from PC, Mac, or tablet web browser |
| Remote/Cloud management | Anywhere, anytime, from the palm of your hand using Insight mobile app or from any PC, Mac, or tablet web browser using the Insight Cloud Portal |
| Centralized network configuration (policies) | Centralized network configuration (policies) across Insight Managed Switches, Wireless Access Points, and Business-class ReadyNAS Storage for VLANs, ACLs, QoS, and LAGs |
| Device auto-join and configure (zero-touch provisioning) | Additional Insight Managed devices added to the network automatically inherit the network configuration |
| Multi-site, multi-network single pane-of-glass view | Manage multiple sites, locations, and networks in a single view using the Insight mobile app or Insight Cloud Portal |
| Multi-switch, multi-port concurrent configuration for ACLs, VLANs, QoS, PoE, etc | Apply settings and policies on multiple ports across multiple switches all at the same time using the Port Config Wizard |
| PERFORMANCE SPECIFICATION | |
| CPU | 500MHz single core 128MB RAM 32MB SPI FLASH |
| Packet buffer memory (Dynamically shared across only used ports) | 512K |
| Forwarding modes | Store-and-forward |
| Bandwidth (non-blocking, full duplex) | 16 Gbps |
| Priority queues | 8 |
| Priority queuing | Weighted Round Robin (WRR) and Strict Priority |
| MAC Address database size (48-bit MAC addresses) | 8K |
| Multicast groups | 256 |
| Number of IPv4 static routes | 32 |
| Number of VLANs | 64 |
| Number of DHCP snooping bindings | 256 |
| Access Control Lists (ACLs) | 100 shared for MAC, IP and IPv6 ACLs |
| Packet forwarding rate (64 byte packet size) (Mfps or Mpps) | 14.8 |
| 1G Copper latency (µsec) (64-byte; 1518-byte; 9216-byte frames) | 64-byte: 3.693 µsec 1518-bye: 3.897 µsec 9216-byte: 3.616 µsec |
| 1G SFP Fiber latency (µsec) (64-byte; 1518-byte; 9216-byte frames) | 64-byte: 3.022 µsec 1518-bye: 3.237 µsec 9216-byte: 2.959 µsec |
| Jumbo frame support | Up to 10K packet size |
| Acoustic noise level @ 25° C (dBA) (ANSI-S10.12) | 0 dBA (fanless) |
| Mean Time Between Failures (MTBF) @ 25° C | 1,200,041 hrs (137 yrs) |
| POE CONFIGURATION | |
| Number of PoE (802.3af) / PoE+ (802.3at) ports | 8 PoE+ |
| Total PoE power budget (watts) | 55 W |
| Advanced per-port PoE controls (enable/disable/power limit) | Yes |
| Advanced per-port PoE scheduling/timers | Yes |
| L2 SERVICES - VLANS | |
| IEEE 802.1Q VLAN Tagging | Yes |
| Protocol-based VLANs | Yes |
| MAC-based VLANs | Yes |
| Auto-VoIP VLAN / Auto-Voice VLAN | Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address |
| Auto-VoIP | Yes, based on protocols (SIP, H.323 and SCCP). Prioritzes traffic to a higher queue. |
| Voice VLAN | Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED. |
| Auto-Video VLAN | Yes |
| L2 SERVICES - AVAILABILITY | |
| Broadcast, multicast, unknown unicast storm control | Yes |
| IEEE 802.3ad - LAGs (LACP) | Yes |
| IEEE 802.3x (full duplex and flow control) | Yes |
| IEEE 802.1D Spanning Tree Protocol | Yes |
| IEEE 802.1w Rapid Spanning Tree Protocol | Yes |
| IEEE 802.1s Multiple Spanning Tree Protocol | Yes |
| L2 SERVICES - MULTICAST FILTERING | |
| IGMP snooping (v1, v2 and v3) | Yes |
| MLD snooping support (v1 and v2) | Yes |
| IGMP snooping queries | Yes |
| Block unknown multicast | Yes |
| Multicast groups | 256 |
| L3 SERVICES - DHCP | |
| DHCP client | Yes |
| DHCP snooping | Yes |
| Number of DHCP snooping bindings | 256 |
| L3 SERVICES - ROUTING | |
| IPv4 static routes | 32 |
| VLAN routing | Yes |
| Host ARP table / NDP cache (number of entries) | 512 ARP |
| ICMP Router Discovery Protocol (IRDP) | Yes |
| LINK AGGREGATION | |
| IEEE 802.3ad - LAGs (LACP) | Yes |
| Manual Static LAG | Yes |
| # of Static or LACP LAGs # of members in each LAG | 8 LAGs with max 8 members in each LAG |
| NETWORK MONITORING AND DISCOVERY SERVICES | |
| 802.1ab LLDP | Yes |
| LLDP-MED | Yes |
| SNMP | Yes |
| RMON group 1,2,3,9 | Yes |
| NETWORK SECURITY | |
| IEEE 802.1x | Yes |
| Guest VLAN | Yes |
| RADIUS-based VLAN assignment via .1x | Yes |
| MAC-based .1x | Yes |
| RADIUS accounting | Yes |
| Access Control Lists (ACLs) | L2 / L3 / L4 |
| IP-based ACLs (IPv4 and IPv6) | Yes |
| MAC-based ACLs | Yes |
| TCP/UPD-based ACLs | Yes |
| MAC lockdown | Yes |
| MAC lockdown by the number of MACs | Yes |
| Control MAC # Dynamic learned entries (per port) | 600 |
| Control MAC # static entries (per port) | 600 |
| IEEE 802.1x RADIUS port access authentication/type | Yes |
| Port-based security by locked MAC addresses | Yes |
| Broadcast, multicast, unknown unicast storm control | Yes |
| DoS attacks prevention | Yes |
| Protected ports | Yes |
| QUALITY OF SERVICE (QOS) | |
| Port-based rate limiting | Yes, egress |
| Port-based QoS | Yes |
| Support for IPv6 fields | Yes |
| DiffServ QoS | Yes, ingress |
| IEEE 802.1p COS | Yes |
| Destination MAC and IP | Yes |
| IPv4 and v6 DSCP | Yes |
| IPv4 and IPv6 ToS | Yes |
| TCP/UDP-based | Yes |
| Weighted Round Robin (WRR) | Yes |
| Strict priority queue technology | Yes |
| Auto-VoIP VLAN / Auto-Voice VLAN | Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address |
| Auto-VoIP | Yes, based on protocols (SIP, H.323 and SCCP). Prioritzes traffic to a higher queue. |
| Voice VLAN | Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED. |
| Auto-Video VLAN | Yes |
| OTHER FEATURES | |
| Advanced per-port PoE controls (enable/disable/power limit) | Yes |
| Advanced per-port PoE scheduling/timers | Yes |
| Loop detection & prevention | Yes (both) |
| DNS Client | Yes |
| Option to enable/disable BPDU flooding when STP is disabled | Yes |
| Option to enable/disable the flooding of EAPOL when 802.1x is disabled | Yes |
| MANAGEMENT, MONITORING & TROUBLESHOOTING | |
| Cloud/Remote management | Yes |
| Insight mobile app & Insight Cloud Portal management | Yes |
| uPnP Discovery | Yes |
| Networking monitoring | Yes |
| Data/performance logs | Yes |
| Centralized network configuration/policies (network- centric management) | Yes |
| Device auto-join and configure (zero-touch provisioning) | Yes |
| Multi-site, multi-network single pane-of-glass view | Yes |
| Multi-switch, multi-port concurrent configuration | Yes |
| Network/global password (for all Insight Managed devices on a network) | Yes (per network/subnet via NETGEAR Insight mobile app and Insight Cloud Portal) |
| Password management | Yes |
| IP Access List | Yes |
| Configurable management VLAN | Yes |
| Admin access control via RADIUS and TACACS+ | Yes |
| IPv6 management | Yes |
| SNTP client over UDP port 123 | Yes |
| Firmware upgrade direct from Cloud (via mobile device or Insight Cloud portal) | Yes |
| SNMP v1/v2c | Yes |
| SNMP v3 with multiple IP addresses | Yes |
| RMON group 1,2,3,9 | Yes |
| Port mirroring | Yes |
| Many-to-one port mirroring | Yes |
| Cable test utility | Yes |
| Ping and tracerout client | Yes |
| Local-only web browser-based management GUI | Yes |
| TLS Web-based access (version) | Yes (v1.2) |
| TFTP/HTTP firmware upload/download | Yes |
| Dual software (firmware) image | Yes |
| Memory and flash log | Yes |
| Syslog (Server) | Yes |
| POWER CONSUMPTION | |
| Max power (worst case, all ports used, line-rate traffic) (Watts) | 15.1 W |
| Max power (worst case, all ports used, full PoE, line-rate traffic) (Watts) | 69.5 W |
| Min power (link-down standby) (Watts) | 4.3 W |
| Heat Dissipation (min w/o PoE and max with full PoE) (BTU/hr) | Max: 237.38 BTU/hr Min: 14.53 BTU/hr |
| Energy Efficient Ethernet (EEE) IEEE 802.3az | Yes (deactivated by default) |
| Auto power down | Yes (deactivated by default) |
| Fan(s) (temperature- and load-based speed control) | Fanless |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (W x D x H) | 236 x 101 x 27 mm ( 9.3 x 4.0 x 1.1 in) |
| Weight | 0.61kg ( 1.34 lb) |
| Mounting options | Desktop, wallmount, VESA-standard |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating | |
| Operating temperature | 0° to 40°C (32° to 104°F) |
| Humidity (relative) | 95% maximum relative humidity (RH), non-condensing |
| Altitude | 10,000 ft (3,000 m) maximum |
| Storage | |
| Storage temperature | –20° to 70°C (– 4° to 158°F) |
| Humidity (relative) | 95% maximum relative humidity (RH), non-condensing |
| Altitude | 10,000 ft (3,000 m) maximum |
| 保固 | 台灣公司貨享5年保固 |
如規格有異動，恕不另行通知。NETGEAR保有所有權利。
