IoT/IIoT高瓦數應用越來越多,你需要更大的PoE供電瓦數

  IoT/IIoT 的時代來臨,市面上陸續推出新款智能數位化設備(如ProAV、智慧燈具、高速旋轉攝影機…等)相對的,對PoE (Power Over Ethernet)的供電瓦數需求越來越高,PoE+的30W供電已不敷使用,需要更高的瓦數來供應這些設備所需要的電力。

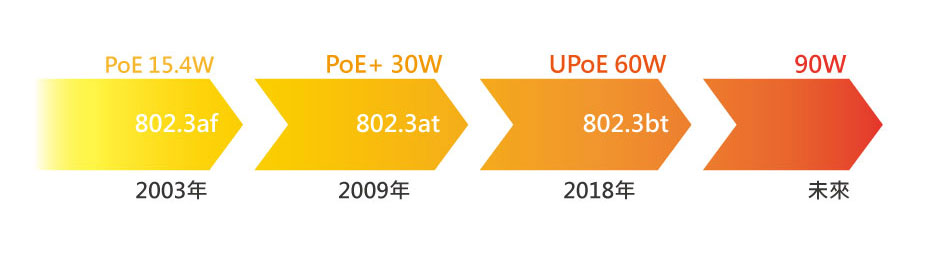

  2018年底,為了滿足高功率耗電設備的部署和使用要求,PoE標準進行了升級,802.3bt可以支援UPoE高達60W的功率,甚至進行了對2.5GBASE-T、5GBASE-T 和 10GBASE- T 等多Giga乙太網標準的支援。
隨著全新PoE標準對輸出功率的增加,PoE供電的應用範圍將逐漸擴大,未來將看到越來越多的通過PoE支援的智慧照明系統、觸控顯示器、對講機、網路門禁系統、網路音響設備、投影視訊設備、收銀機以及更為廣泛的IoT智慧家庭設備。

美國網路大廠NETGEAR
推出Ultra60 PoE(PoE++) 大瓦數供電的交換器

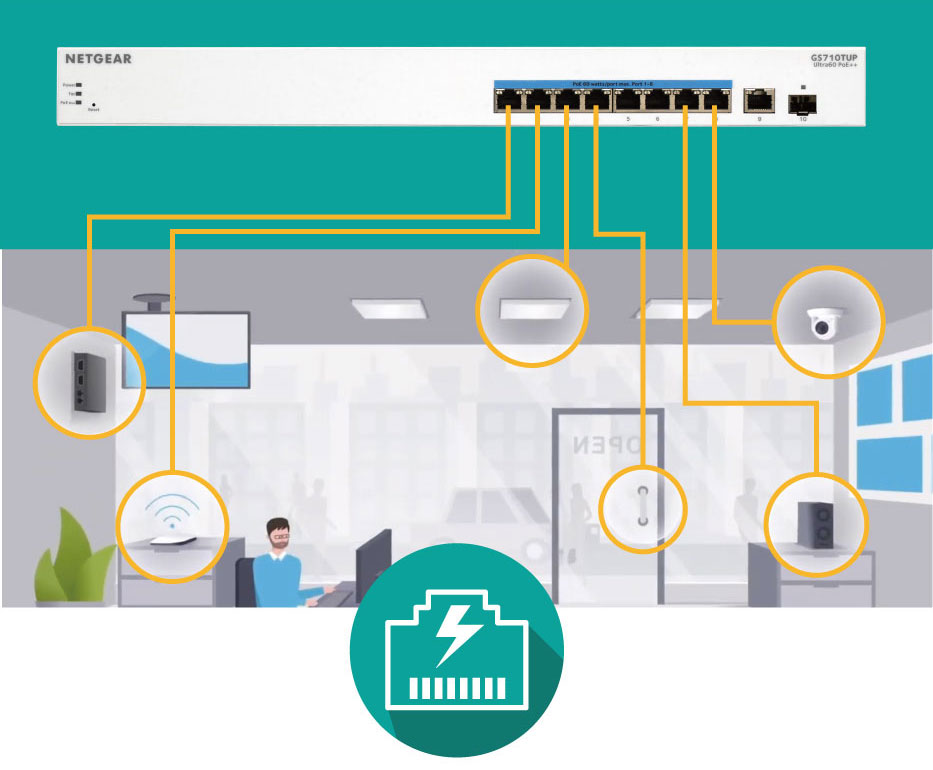

  符合最新802.3 bt標準協定,每個Ultra60連接埠最高提供60W。能夠為IoT設備提供足夠的電力(例如:LED照明、PTZ變焦高速旋轉攝影機、網路音訊喇叭等等)。

Netgear有支援 PoE/PoE+/PoE++的型號如下:

ProSAFE SWITCHES WITH POE/POE+/UPOE

Model

PORTS

PoE Ports

PoE Budget

雲管理交換器

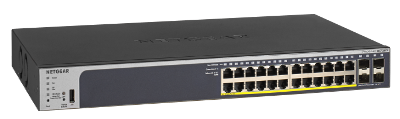

GS728TPv2

24 x GbE + 4 SFP

24(PoE+)

190W

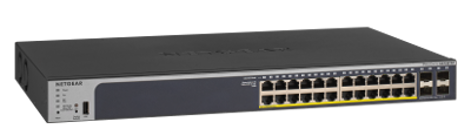

GS728TPPv2

24 x GbE + 4 SFP

24(PoE+)

380 W

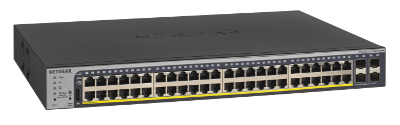

GS752TPv2

48 x GbE + 4 SFP

48(PoE+)

380 W

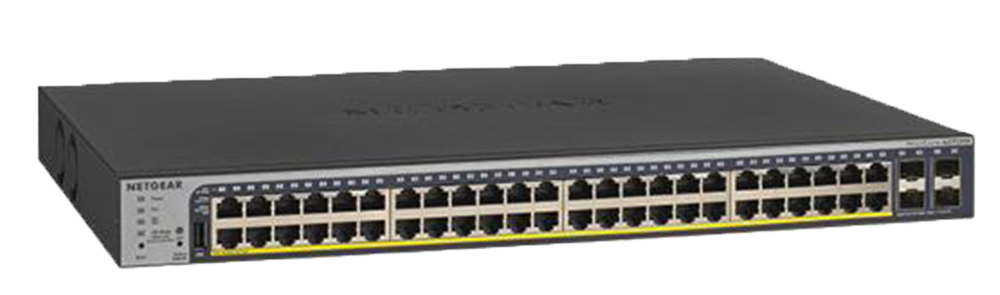

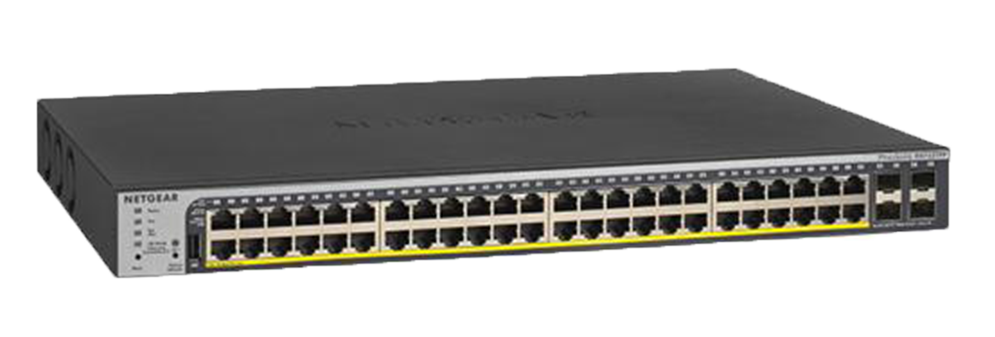

GS752TPP

48 x GbE + 4 SFP

48(PoE+)

760 W

MS510TXUP

4 x 1G/2.5G 4 x 1G/2.5G/5G/10G

2 x 10G SFP+ 8(PoE++)

295 W

無網管交換器

GS108LP(Fanless)

8 x GbE

8(PoE+)

60W with 67.5W PSU 83W with 90W PSU 123W with 130W PSU

GS108PP(Fanless)

8 x GbE

8(PoE+)

123W with 130W PSU

GS116LP(Fanless)

16 x GbE

16(PoE+)

76W with 90W PSU 115W with 130W PSU 183W with 200W PSU

GS116PP(Fanless)

16 x GbE

16(PoE+)

183W with 200W PSU

GS516PP

16 x GbE

16(PoE+)

260W

GS524PP

24 x GbE

24(PoE+)

300W

GS524UP

24 x GbE

16(PoE++) 8(PoE+)

480W

簡易網管交換器

GS105PE(PD-Powered Device Only-No AC POWER)

5 x GbE

2 x PoE, 1 x PD

up to 19W with 802.3at(30W) power in, up to 7.9w with 802.3af(15.4W) power in

MS108EUP

8 x 2.5GbE/Multi-Gig

4(PoE+) 4(PoE++)

230W

智能網管交換器

MS108TUP

8 x GbE

4 x 1G/2.5G PoE++

4 x 1G/2.5G PoE+

230W

GS110TP

8 x GbE + 2 SFP

8(PoE)

46W

GS510TLP

8 x GbE + 2 SFP

8(PoE+)

75W

GS510TPP

8 x GbE + 2 SFP

8(PoE+)

190W

GS724TPv3

24 x GbE + 2 SFP

24(PoE+)

190W

GS724TPPv3

24 x GbE + 2 SFP

24(PoE+)

380W

GS728TPv2

24 x GbE

4 x SFP

24(PoE+)

190W

GS728TPPv2

24 x GbE

4 x SFP

24(PoE+)

380W

GS752TPv2

48 x GbE + 4 x SFP

48(PoE+)

380W

GS752TPP

48 x GbE

4 x SFP

48 (PoE+)

760W

MS324TXUP

24 x 2.5G/Multi-Gig

4 x 10G SFP+

24(PoE++)

720W

MS510TXUP

4 x 1G/2.5G 4 x 1G/2.5G/5G/10G

2 x 10G SFP+ 8(PoE++)

295 W

GS728TXPv3

24 x GbE
4 x 10G SFP+

24(PoE+)

190W

GS752TXPv3

48 x GbE
4 x 10G SFP+

48(PoE+)

380W

UltraPoE++交換器

MS324TXUP

24 x 2.5G/Multi-Gig

4 x 10G SFP+

24(PoE++)

720W

MS108TUP

8 x GbE

4 x 1G/2.5G PoE++

4 x 1G/2.5G PoE+

230W

MS510TXUP

4 x 1G/2.5G 4 x 1G/2.5G/5G/10G

2 x 10G SFP+ 8(PoE++)

295 W

GS516UP

16 x GbE

8(PoE++) 8(PoE+)

380W

GS524UP

24 x GbE

16(PoE++) 8(PoE+)

480W

M4200 系列全網管交換器

M4200-10MG-PoE+(GSM4210P)

6 x 1G/2.5G 2 x 1G/2.5G/5G 2 x 10G SFP+

8(PoE+)

240W

M4250 系列全網管交換器

GSM4210PD

9 x GbE + 1 x SFP

8(PoE+)

110W

GSM4210PX

8 x GbE + 2 x SFP+

8(PoE+)

220W

M4250-10G2F-PoE+ (GSM4212P)

10 * 1G + 2 SFP

8(PoE +)

125W

M4250-10G2XF-PoE+ (GSM4212PX)

10 * 1G + 2 SFP+

8(PoE +)

240W

M4250-10G2XF-PoE++ (GSM4212UX)

10 * 1G + 2 SFP+

8(PoE ++)

720W

M4250-26G4F-PoE+ (GSM4230P)

26 * 1G + 4 SFP

24(PoE +)

300W

M4250-26G4F-PoE++ (GSM4230UP)

26 * 1G + 4 SFP

24(PoE ++)

720W with 1PSU
1440W with 2PSU

M4250-26G4XF-PoE+ (GSM4230PX)

26 * 1G + 4 SFP+

24(PoE +)

480W

M4250-40G8F-PoE+ (GSM4248P)

40 * 1G + 8 SFP

40(PoE +)

480W

M4250-40G8XF-PoE+ (GSM4248PX)

40 * 1G + 8 SFP+

40(PoE +)

960 W

M4250-40G8XF-PoE++ (GSM4248UX)

40 * 1G + 8 SFP+

40(PoE ++)

720W with 1PSU
1650W with 2PSU

2880W with 3PSU

M4300 系列全網管交換器

M4300-28G-PoE+(GSM4328PA)

24 x GbE + 2 x 10GbE + 2x 10G SFP+

24(PoE+)

480W with 1PSU(APS550W) up to 720W with 2PSU (EPS mode)

M4300-28G-PoE+(GSM4328PB)

24 x GbE + 2 x 10GbE + 2x 10G SFP+

24(PoE+)

630W with 1 PSU(APS1000W,110V AC in) 720W with 1 PSU(APS1000W,220V AC in) up to 720W with 2PSU (RPS mode)

M4300-52G-PoE+(GSM4352PA)

48 x GbE + 2 x 10GbE + 2x 10G SFP+

48(PoE+)

480W with 1PSU(APS550W) up to 720W with 2PSU (EPS mode)

M4300-52G-PoE+(GSM4352PB)

48 x GbE + 2 x 10GbE + 2x 10G SFP+

48(PoE+)

591W with 1 PSU(APS1000W,110V AC in) up to 1010W with 2 PSU(110V, AC in EPS Mode) 860W with 1 PSU(APS1000W,220V AC in) up to 1440W with 2PSU (220V AC in, EPS mode)

M4300-16X(XSM4316PA)

16 x 10GbE

16(PoE+)

199W with APS299W PSU

M4300-16X(XSM4316PB)

16 x 10GbE

16(PoE+)

500W with APS600W PSU

M4300-96X PoE Module - APM408P

8 x 1G/2.5G/5G/10G

8(PoE+)

up to 30W Per Port

M4350 系列全網管交換器

M4350-24G4XF
GSM4328

24 x GbE
4 x SFP+

24(PoE+)

內建電源供 648W(基本)
外加電源模組 x 1 可至 720W

M4350-48G4XF
GSM4352

48 x GbE
4 x SFP+

48(PoE+)

內建電源供 236W(基本)
外加電源模組 x 2 可至 1,440W

M4350-44M4X4V
MSM4352

44 x 100M/1G/2.5G PoE++
4 x 100M/1G/2.5G/5G/10G PoE++
4 x 1G/10G/25G SFP28

48(PoE+)

內建電源供 194W(基本)
外加電源模組 x 2 可至 3,314W

M4350-24X4V
XSM4328CV

24 x 100M / 1G / 2.5G / 5G / 10G
4 x 1G / 10G / 25G SFP28

24(PoE+)

內建電源供 576W(基本)
外加電源模組 x 1 可至 720W

M4350-36X4V
XSM4340CV

36 x 100M / 1G / 2.5G / 5G / 10G
4 x 1G / 10G / 25G SFP28

36(PoE+)

內建電源供 280W(基本)
外加電源模組 x 1 可至 1,760W

M4350-24X8F8V
XSM4340V

24 x 100M / 1G / 2.5G / 5G / 10G
8 x 1G / 10G SFP+
8 x 1G / 10G / 25G SFP28

24(PoE+)

內建電源供 290W(基本)
外加電源模組 x 1 可至 1,770W

M4350-40X4C
(有支援SMPTE 2110)
XSM4344C

40 x 100M / 1G / 2.5G / 5G / 10G
4 x 40G / 100G QSFP28

40(PoE+)

內建電源供 196W(基本)
外加電源模組 x 1 可至 1,676W

RPS/EPS 選項

PRODUCT

DESCRIPTION

RPS4000v2

External / Redundant Power Supply (Up to four switches - RPS or EPS mode)

EPS90W

Power Module for GS108LP / GS108PP / GS116LP / GS116PP

EPS130W

Power Module for GS108LP / GS108PP / GS116LP / GS116PP

EPS200W

Power Module for GS116LP / GS116PP

APS299W

Power Module for M4300-16X

APS550W

Power Module for M4300-28G-PoE+ / M4300-52G-PoE+

APS600W

Power Module for M4300-16X / M4300-96X PoE+

APS1000W

Power Module for M4300-28G-PoE+ / M4300-52G-PoE+ / RPS4000

APS1200W

Power Module for M4300-96X PoE+
