隨著監控設備朝向高畫質、高頻寬、全天候運作發展，網路交換器成為穩定運作的關鍵。
傳統監控、門禁、無線AP、智慧照明，常常遇到最大痛點：電源插座不好找，佈線又麻煩。
PoE（Power over Ethernet，乙太網供電）正是為了解決這個問題而生——
它能透過一條網路線，同時傳輸資料與電力，讓您在任何角落快速安裝設備，不必為電力頭痛。
什麼是 PoE？
PoE的供電設備標準有下面幾種:
IEEE802.3af 單埠網路口最高 15.4W，
適合 IP Phone、一般攝影機
IEEE802.3.at 單埠網路口最高 30W，
適合無線AP、PTZ攝影機
IEEE802.3bt 單埠網路口60W(含)以上，
適合高速旋轉攝影機、LED照明、音訊設備
如果你的PoE交換器使用IEEE 802.3af或IEEE 802.3at標準, 那麼PoE交換器會自動檢測電力需求, 如果不符合設備要求, 它就不會供電。
為監控應用而生的全方位交換器
NETGEAR PoE 交換器會自動檢測設備需求，並確保供電安全，避免燒壞設備。這意味著：
1. 插上去就能用，免煩惱功率不足或不相容
2. 施工省時，安裝穩定，不怕後續維修麻煩
監控應用場景
1. 一條線搞定供電與網路，不必找插座，快速佈線省工省料。
2. PoE+ 高功率，支援高解析度與變焦 PTZ 攝影機。
IoT 應用場景
1. 支援 IoT 設備（門禁、感測器、AP、VoIP）的連線
2. 集中供電管理，避免插座與變壓器凌亂帶來的安全風險。
NETGEAR PoE交換器系列齊全供您選擇
支援市場 IEEE 802.3af / 802.3at / 802.3bt 標準、數位化設備供電，
有最齊全的交換器產品線，埠數豐富、貼心提供公五年保固服務。
ProSAFE SWITCHES WITH POE/POE+/UPOE | |||||
產品分類 | 產品圖 | 型號 | PORTS | PoE Ports | PoE Budget |
 | GS108LP(Fanless) | 8 x GbE | 8(PoE+) | 60W with 67.5W PSU 83W with 90W PSU 123W with 130W PSU | |

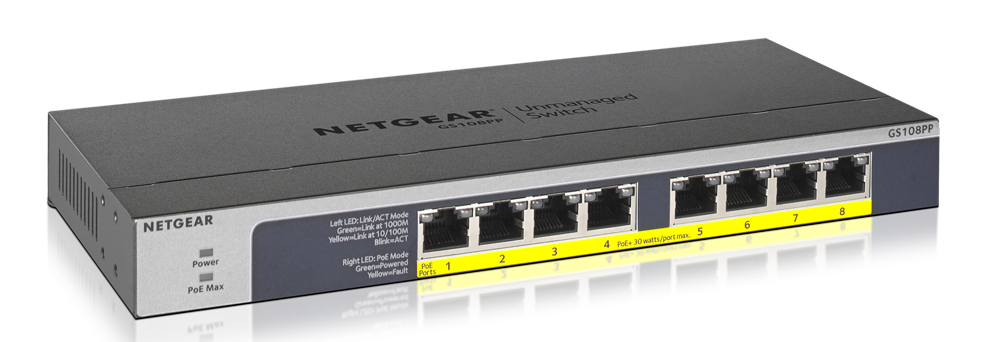

 | GS108PP(Fanless) | 8 x GbE | 8(PoE+) | 123W with 130W PSU | |

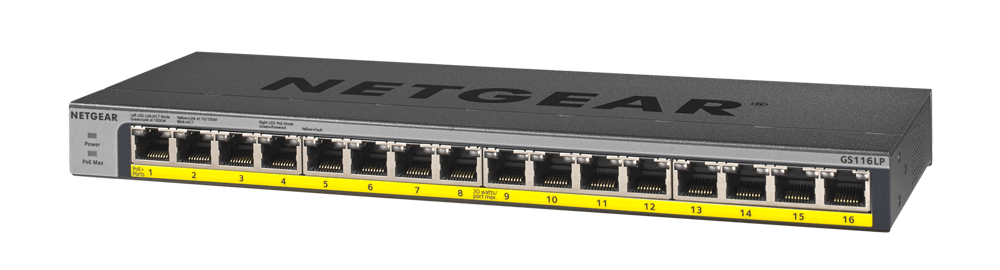

 | GS116LP(Fanless) | 16 x GbE | 16(PoE+) | 76W with 90W PSU 115W with 130W PSU 183W with 200W PSU | |

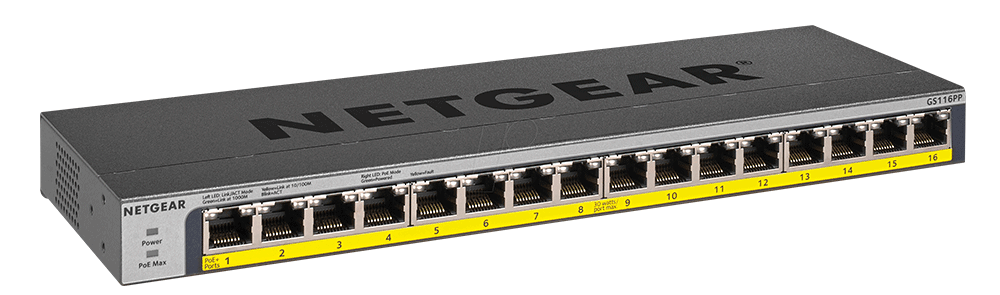

 | GS116PP(Fanless) | 16 x GbE | 16(PoE+) | 183W with 200W PSU | |

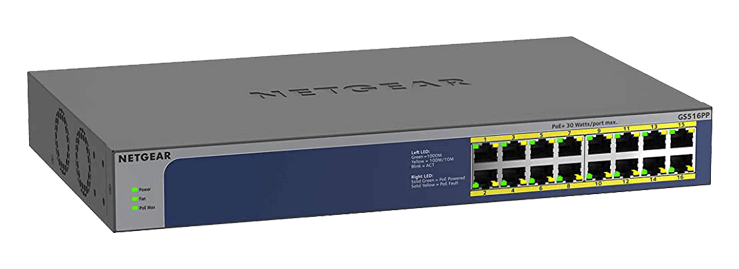

 | GS516PP | 16 x GbE | 16(PoE+) | 260W | |

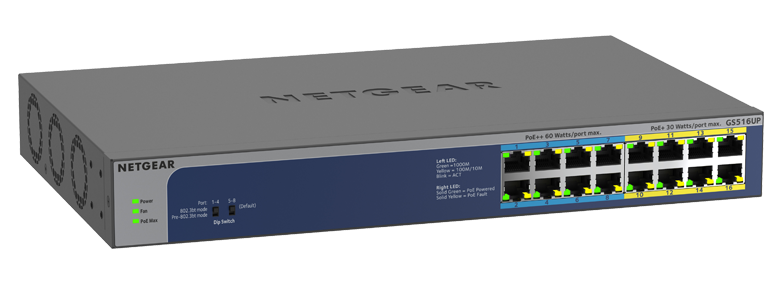

 | GS516UP | 16 x GbE | 8(PoE++) 8(PoE+) | 380W | |

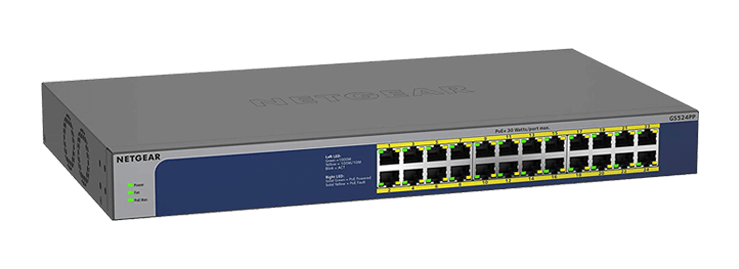

 | GS524PP | 24 x GbE | 24(PoE+) | 300W | |

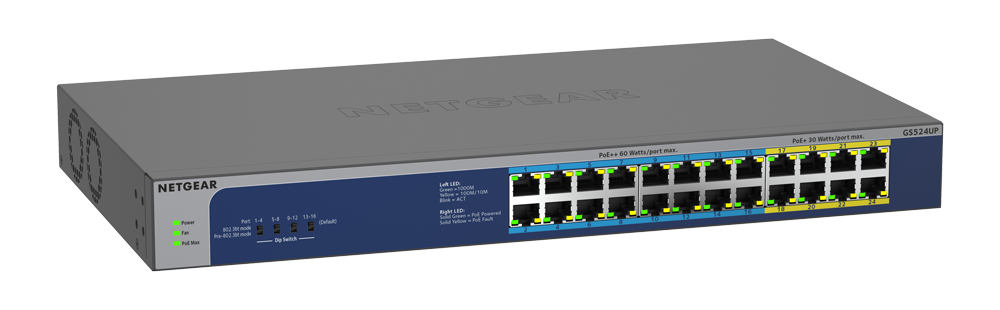

 | GS524UP | 24 x GbE | 16(PoE++) 8(PoE+) | 480W | |

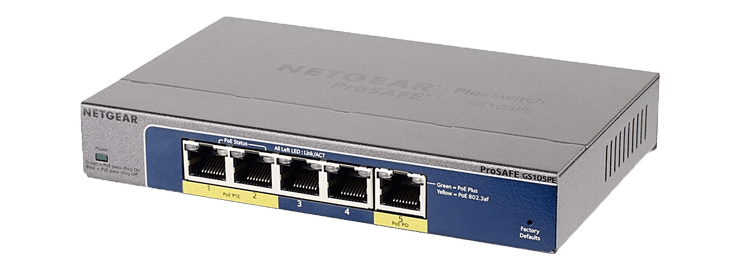

 | GS105PE(PD-Powered Device Only-No AC POWER) | 5 x GbE | 2 x PoE, 1 x PD | up to 19W with 802.3at(30W) power in, up to 7.9w with 802.3af(15.4W) power in | |
 | GS305EP *電商限定型號 | 5 x GbE | 4 (PoE+) | 63W | |
| GS305EPP *電商限定型號 | 5 x GbE | 4 (PoE+) | 120W | |

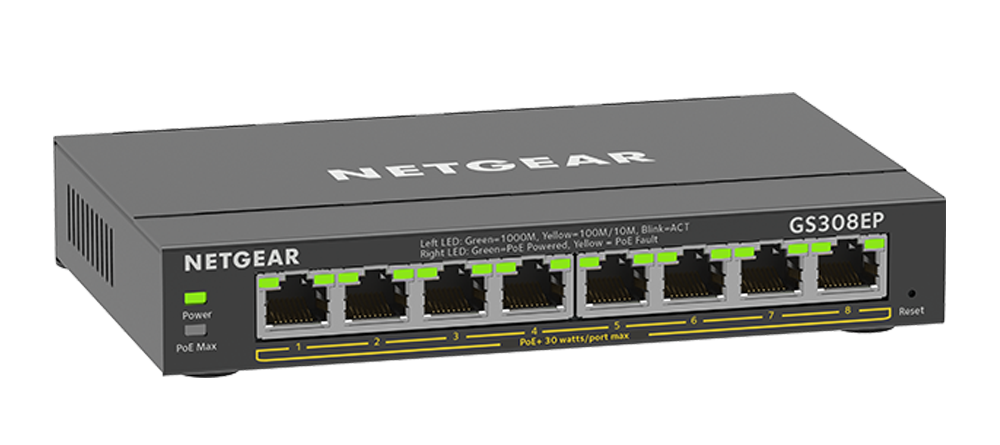

 | GS308EP *電商限定型號 | 8 x GbE | 8 (PoE+) | 62W | |
 | GS308EPP *電商限定型號 | 8 x GbE | 8 (PoE+) | 123W | |
 | GS316EP *電商限定型號 | 15 x GbE + 1 SFP | 15 (PoE+) | 180W | |
 | GS316EPP *電商限定型號 | 15 x GbE + 1 SFP | 15 (PoE+) | 231W | |

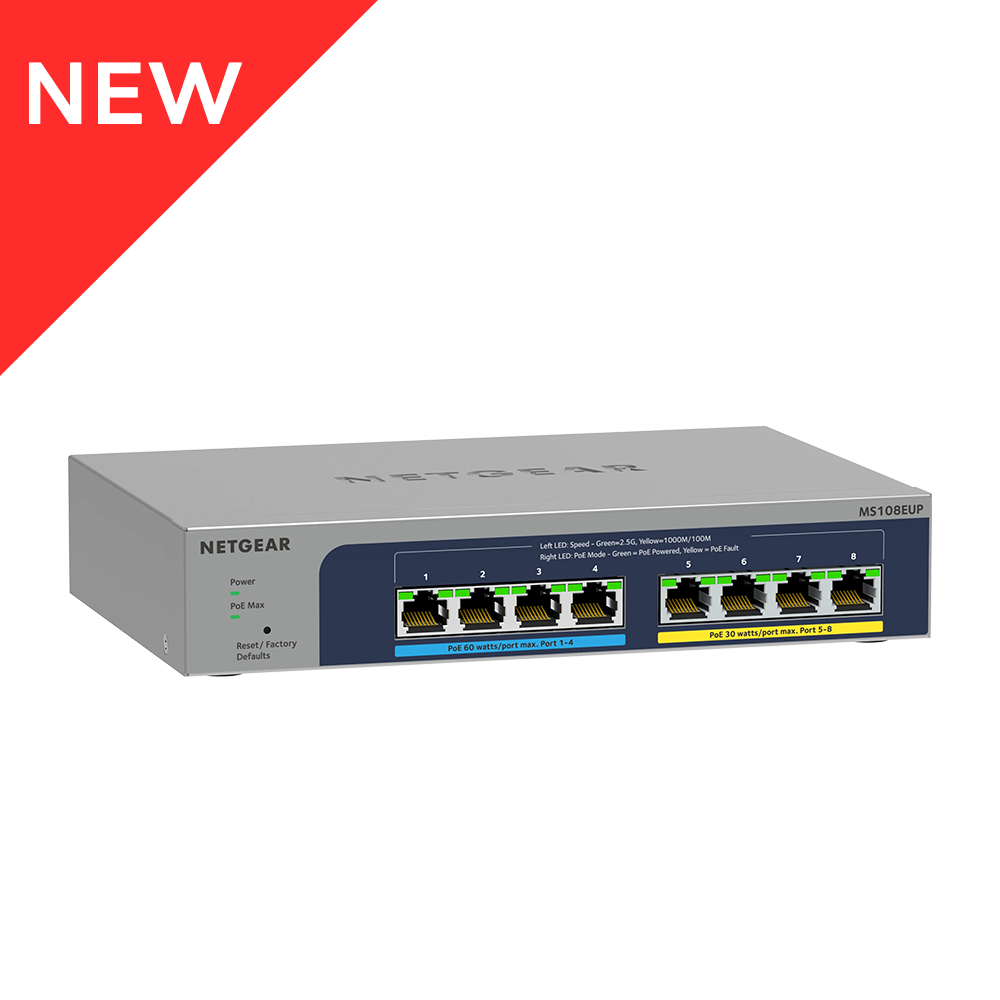

 | MS108EUP | 8 x 2.5GbE/Multi-Gig | 4(PoE+) 4(PoE++) | 230W | |

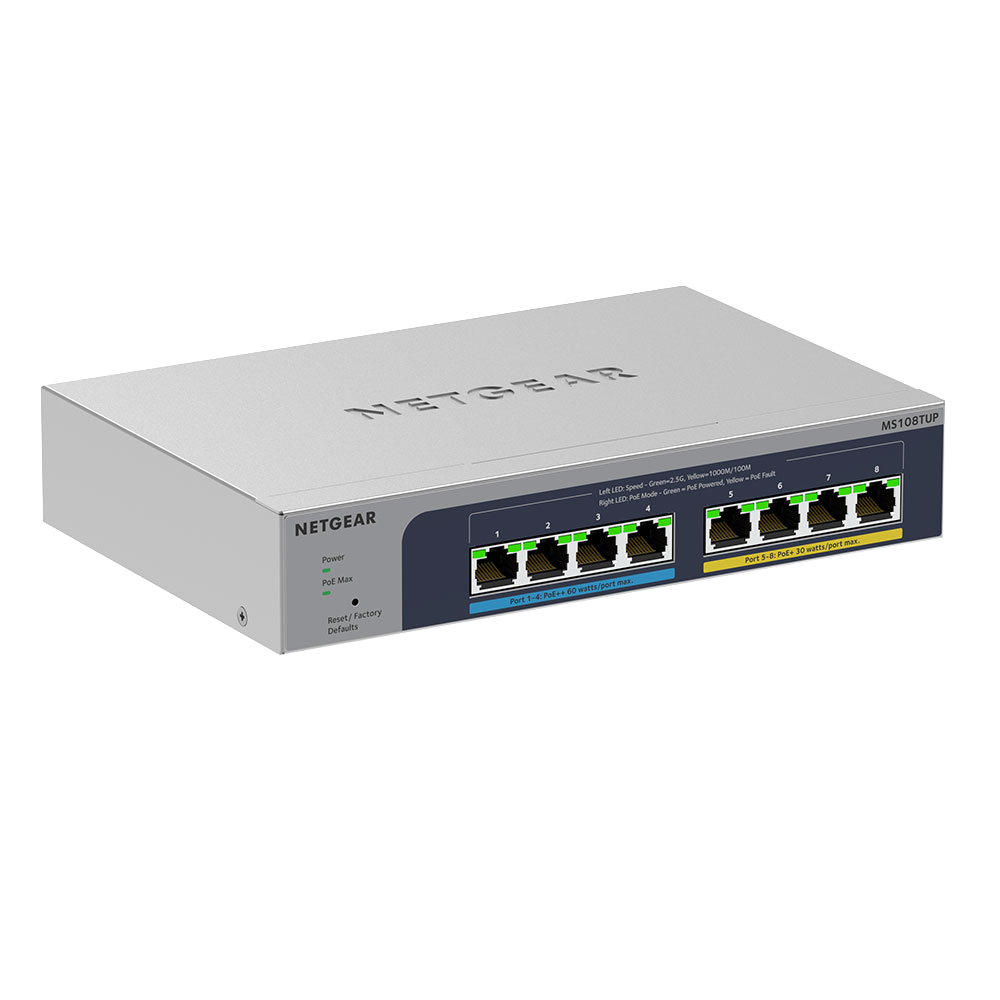

 | MS108TUP | 8 x GbE | 4 x 1G/2.5G PoE++ 4 x 1G/2.5G PoE+ | 230W | |

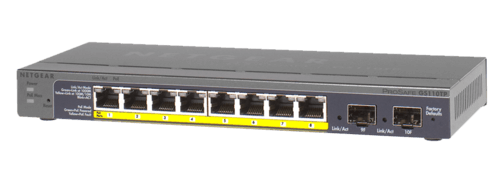

 | GS110TP | 8 x GbE + 2 SFP | 8(PoE+) | 55W | |

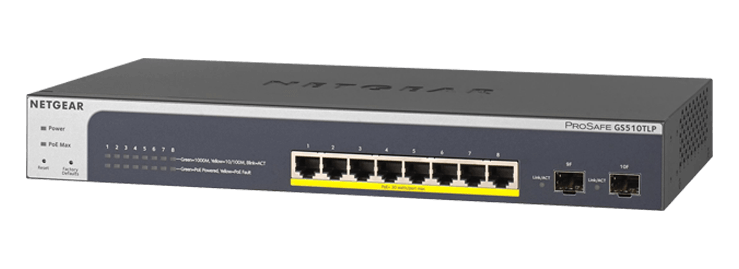

 | GS510TLP | 8 x GbE + 2 SFP | 8(PoE+) | 75W | |

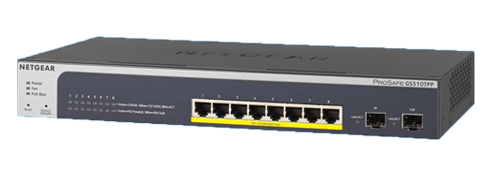

 | GS510TPP | 8 x GbE + 2 SFP | 8(PoE+) | 190W | |
 | GS724TPv3 | 24 x GbE + 2 SFP | 24(PoE+) | 190W | |
 | GS724TPPv3 | 24 x GbE + 2 SFP | 24(PoE+) | 380W | |

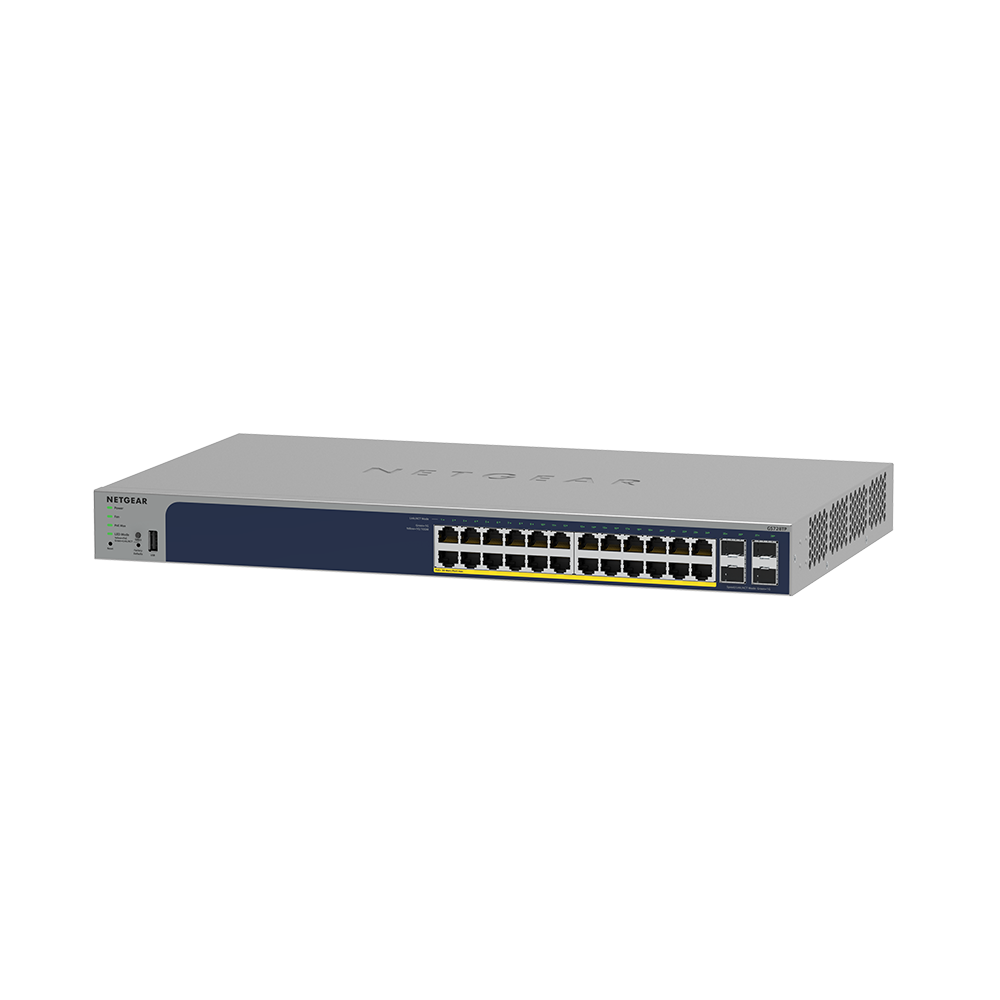

 | GS728TPv3 | 24 x GbE 4 x SFP | 24(PoE+) | 190W | |

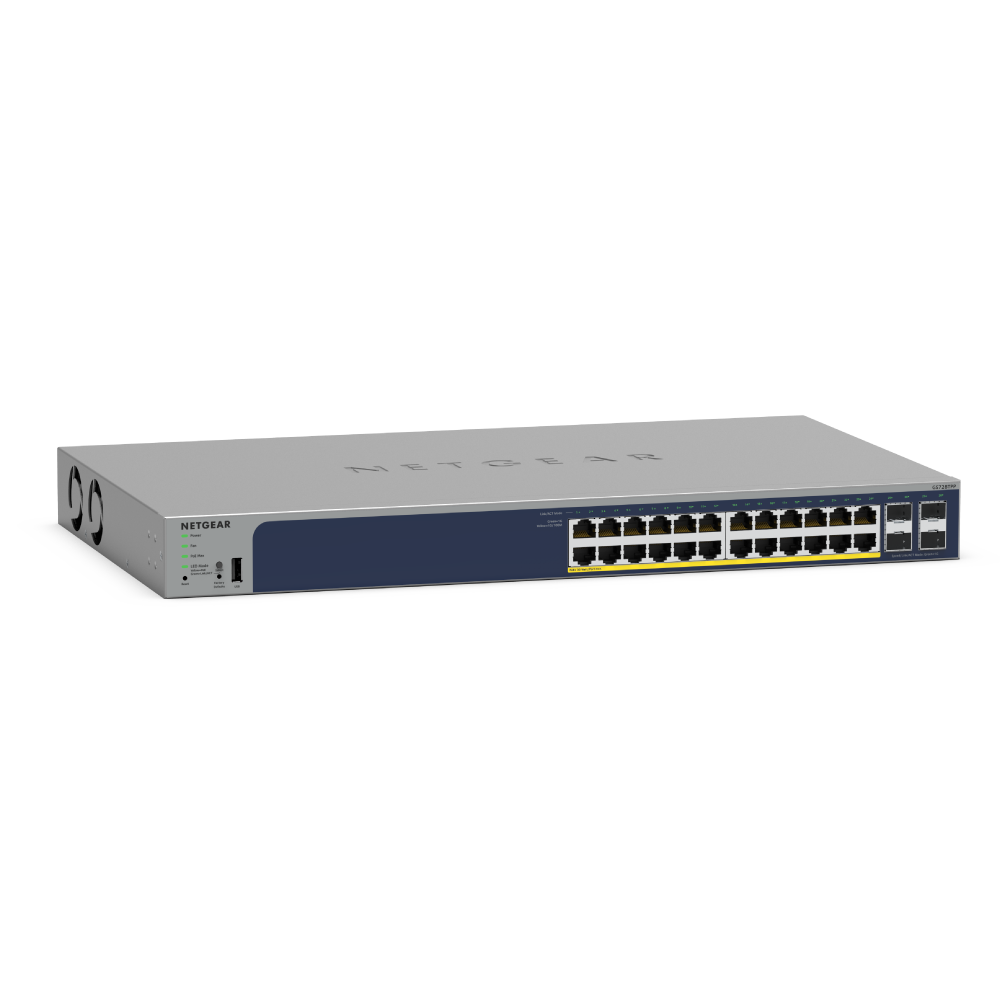

 | GS728TPPv3 | 24 x GbE 4 x SFP | 24(PoE+) | 380W | |

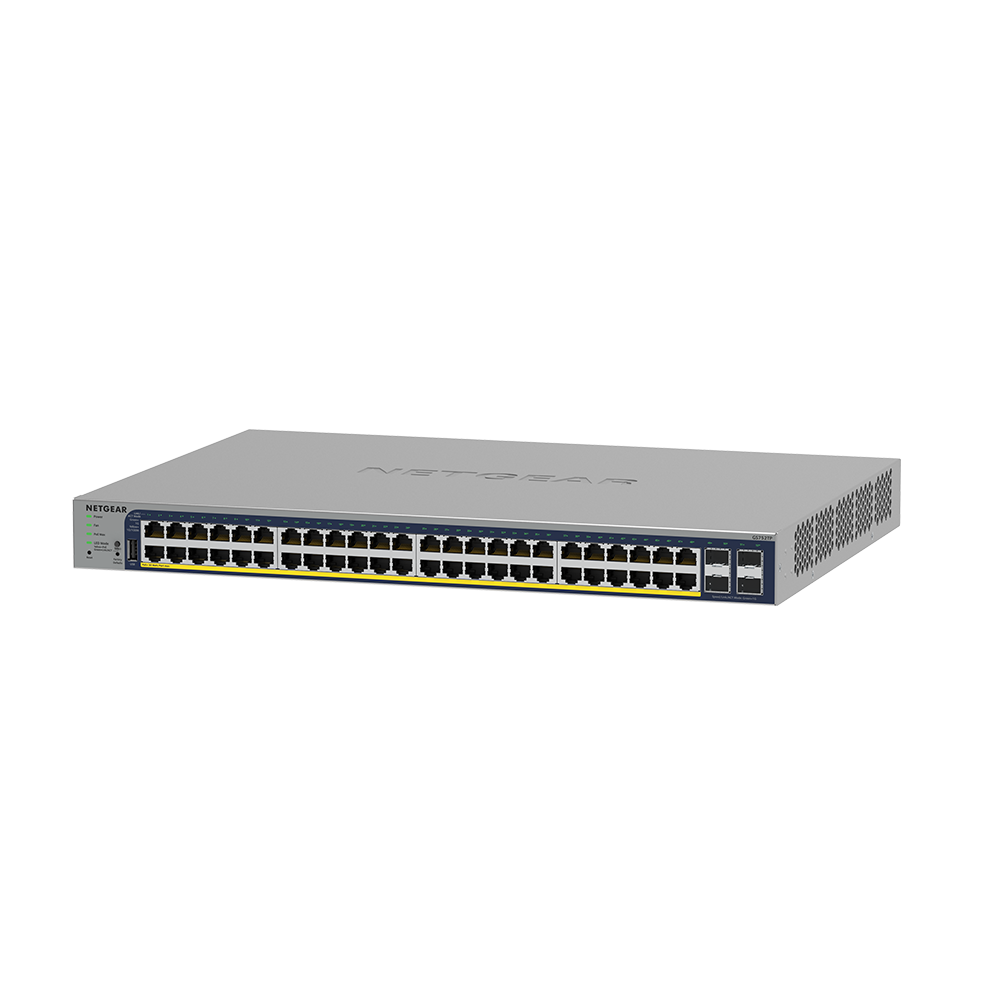

 | GS752TPv3 | 48 x GbE + 4 x SFP | 48(PoE+) | 380W | |
 | GS752TPPv3 | 48 x GbE 4 x SFP | 48 (PoE+) | 760W | |

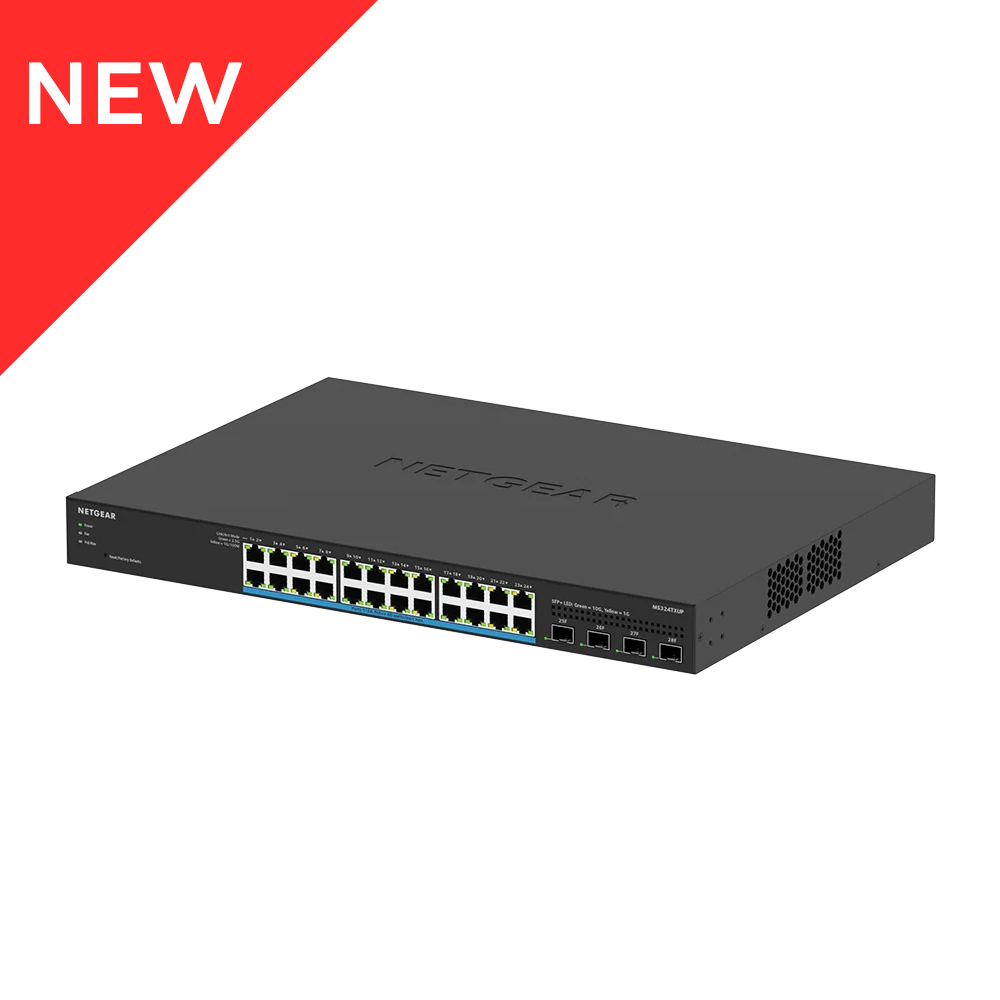

 | MS324TXUP | 24 x 2.5G/Multi-Gig 4 x 10G SFP+ | 24(PoE++) | 720W | |

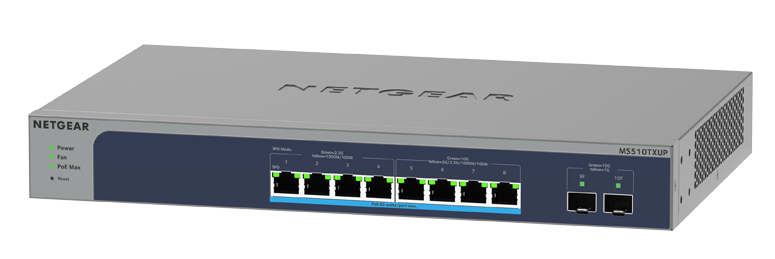

 | MS510TXUP | 4 x 1G/2.5G 4 x 1G/2.5G/5G/10G | 2 x 10G SFP+ 8(PoE++) | 295 W | |

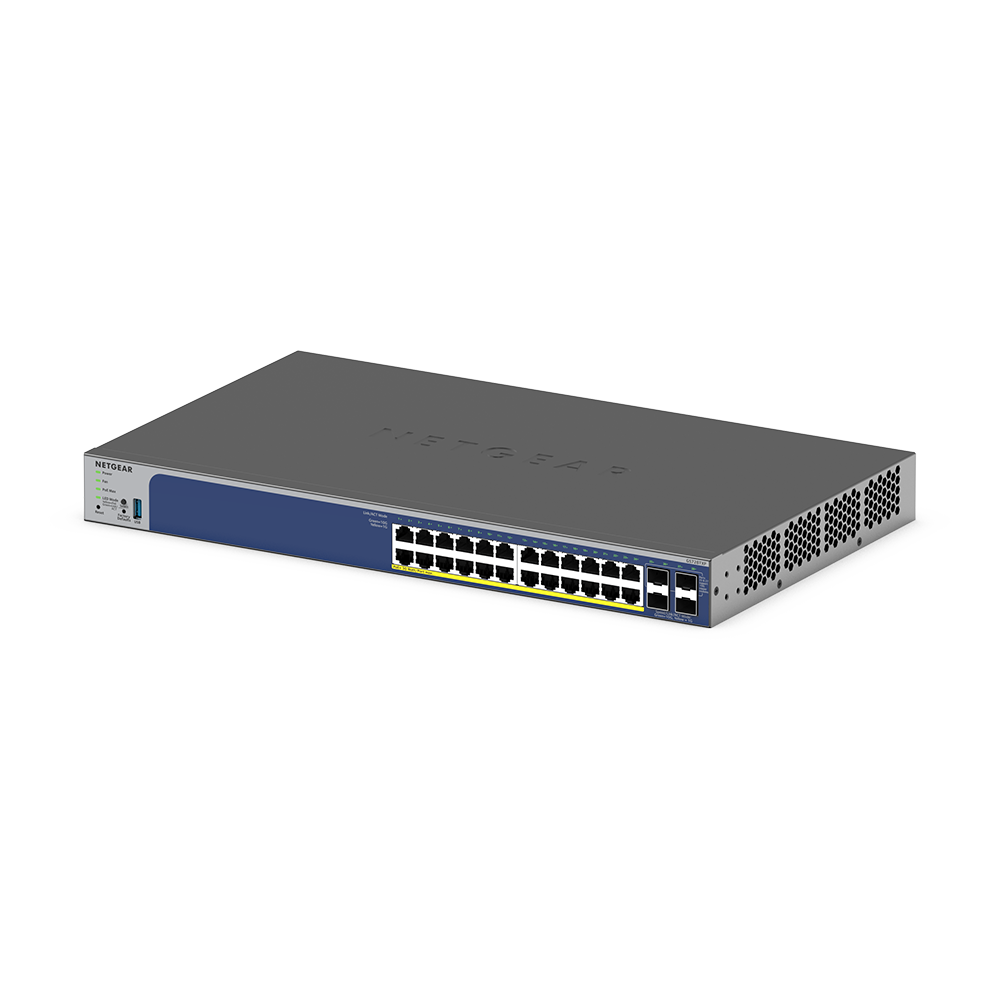

 | GS728TXPv3 | 24 x GbE | 24(PoE+) | 190W | |

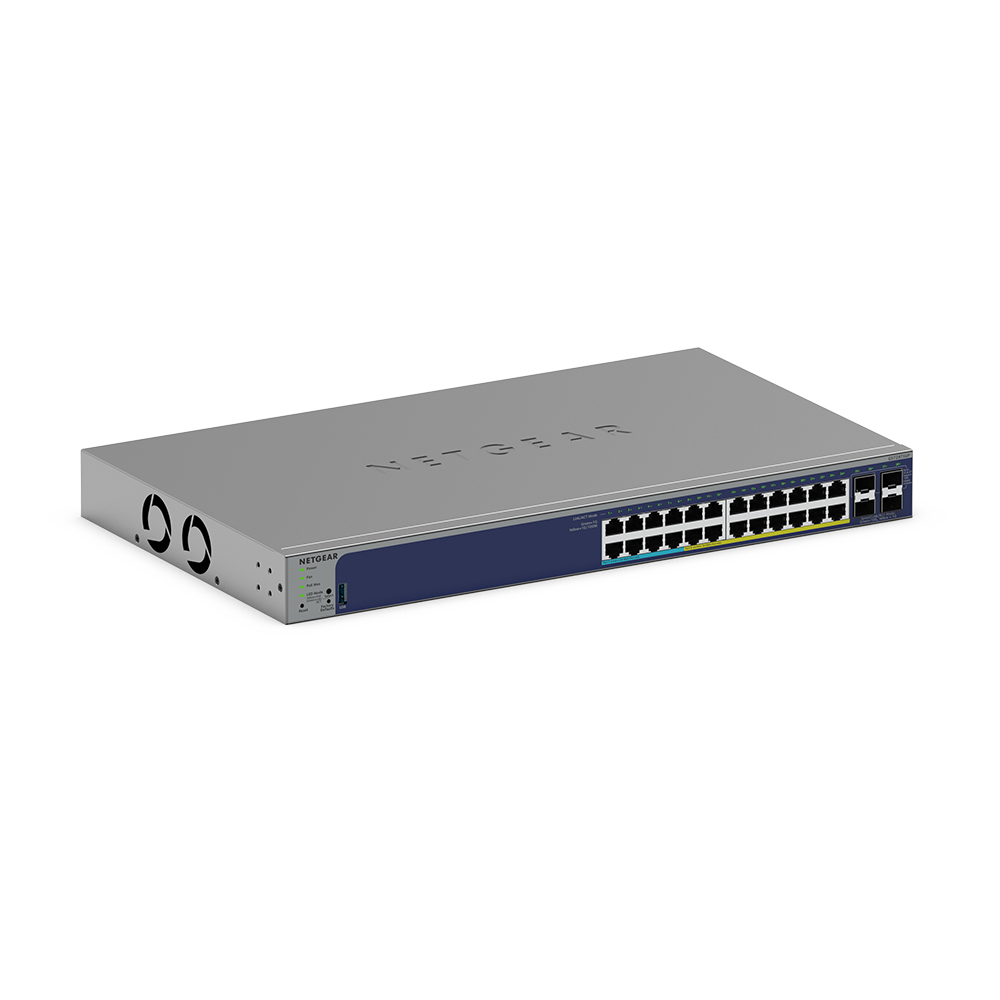

 | GS728TXUPv3 | 24 x GbE | 24(PoE+) | 420W | |

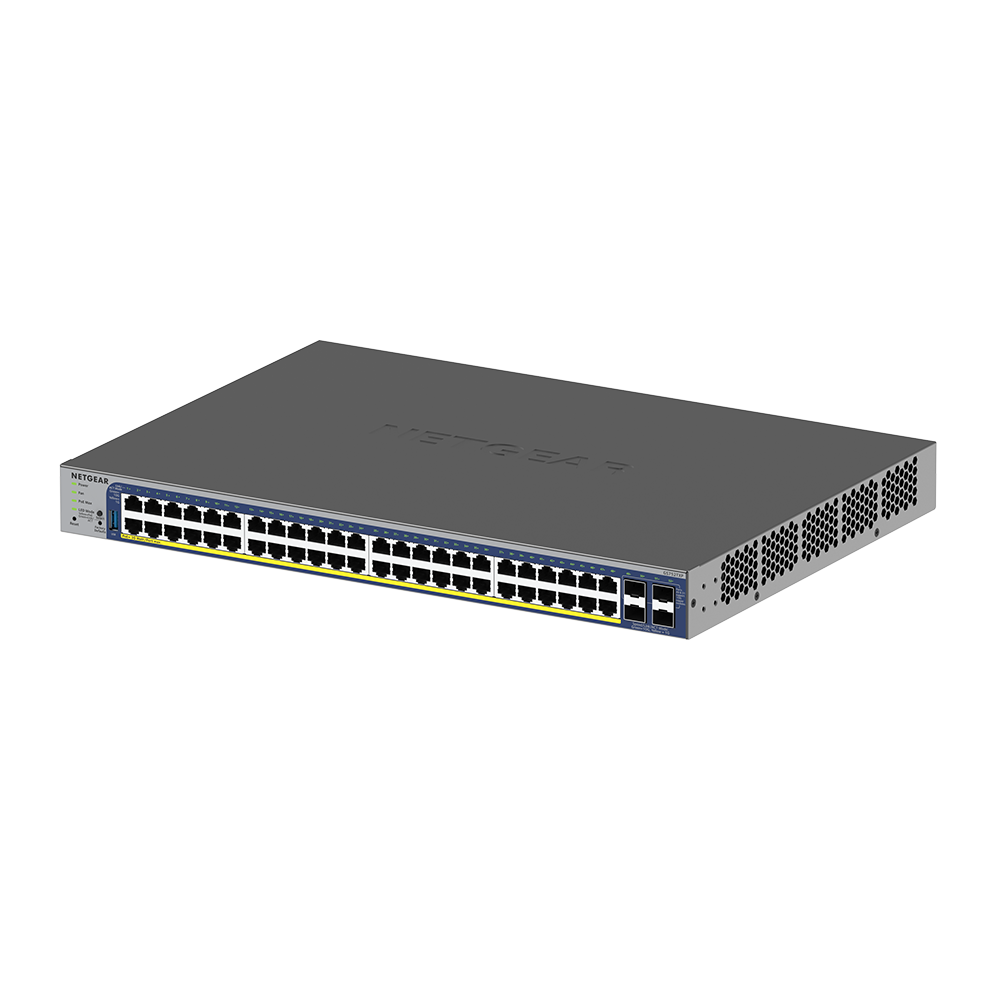

 | GS752TXPv3 | 48 x GbE | 48(PoE+) | 380W | |

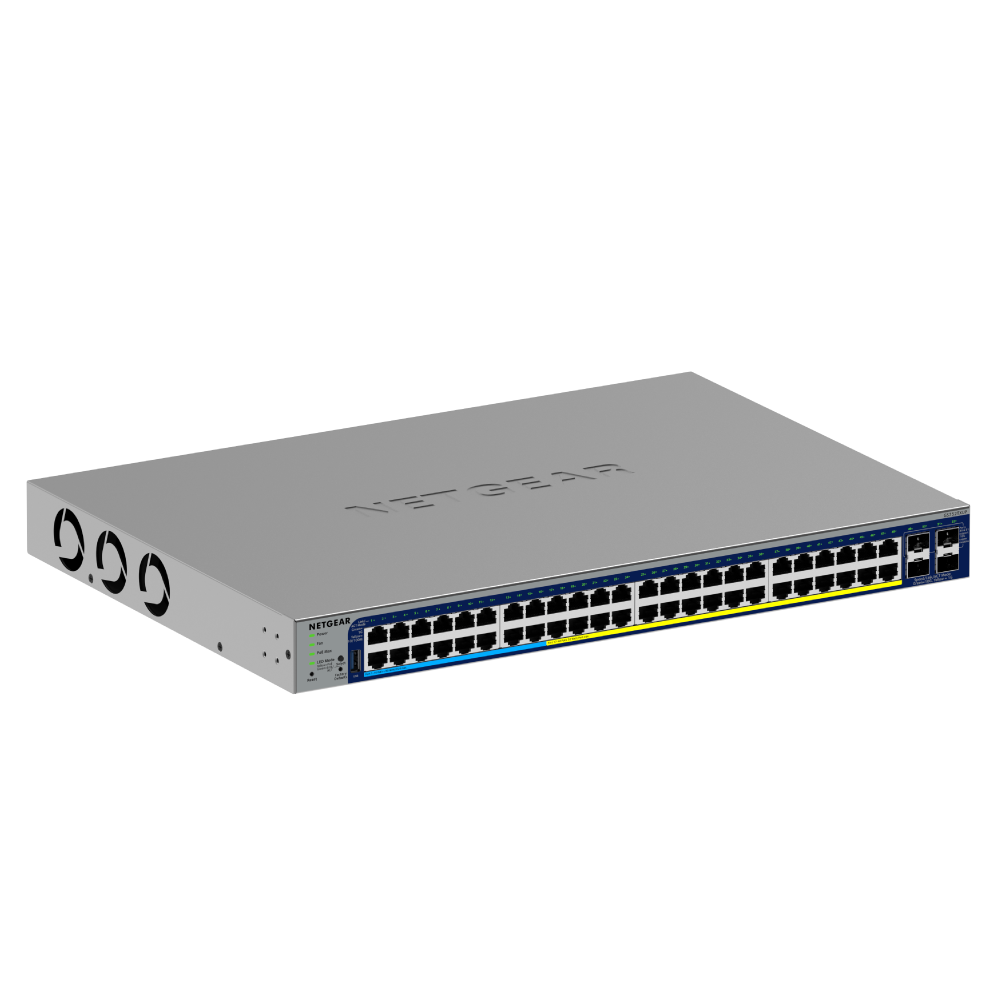

 | GS752TXUPv3 | 48 x GbE | 32(PoE+) | 640W | |

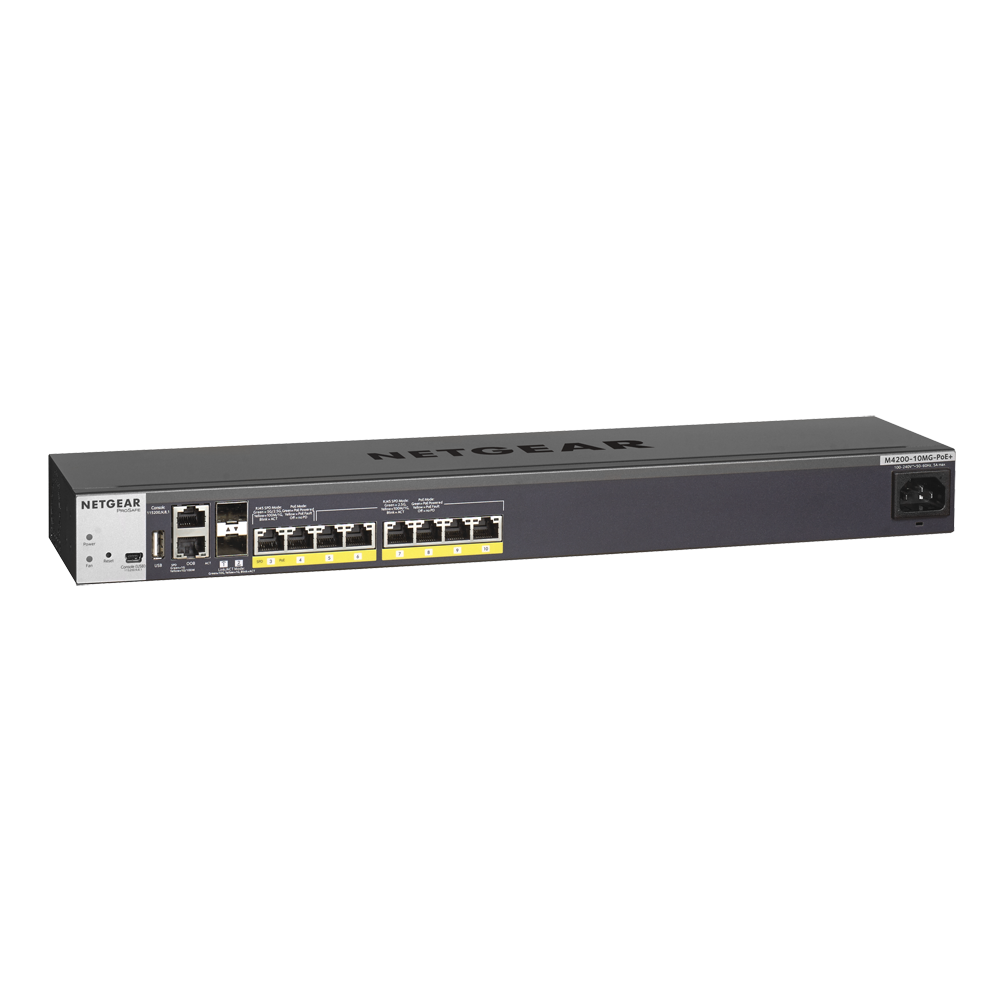

 | M4200-10MG-PoE+(GSM4210P) | 6 x 1G/2.5G 2 x 1G/2.5G/5G 2 x 10G SFP+ | 8(PoE+) | 240W | |

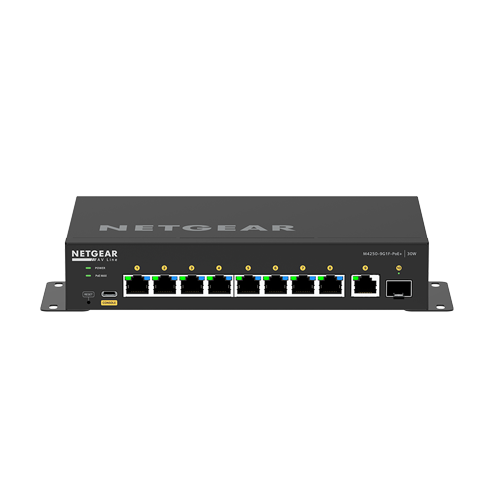

 | GSM4210PD | 9 x GbE + 1 x SFP | 8(PoE+) | 110W | |

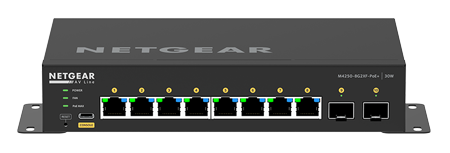

 | GSM4210PX | 8 x GbE + 2 x SFP+ | 8(PoE+) | 220W | |

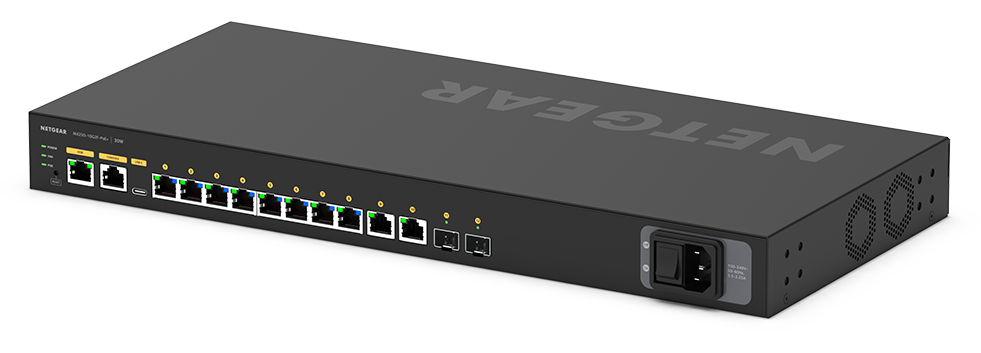

 | M4250-10G2F-PoE+ (GSM4212P) | 10 * 1G + 2 SFP | 8(PoE +) | 125W | |

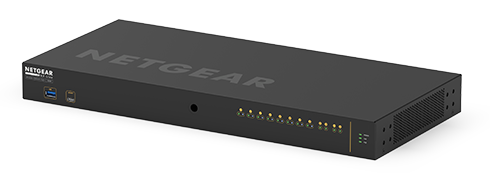

 | M4250-10G2XF-PoE+ (GSM4212PX) | 10 * 1G + 2 SFP+ | 8(PoE +) | 240W | |

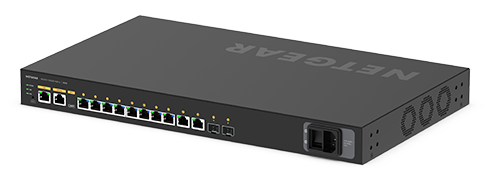

 | M4250-10G2XF-PoE++ (GSM4212UX) | 10 * 1G + 2 SFP+ | 8(PoE ++) | 720W | |

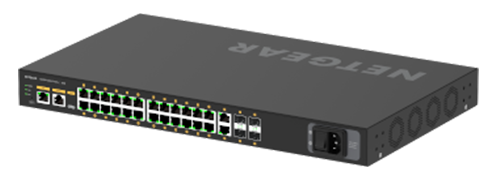

 | M4250-26G4F-PoE+ (GSM4230P) | 26 * 1G + 4 SFP | 24(PoE +) | 300W | |

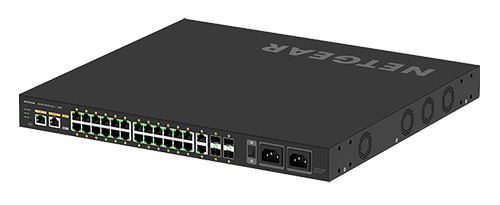

 | M4250-26G4F-PoE++ (GSM4230UP) | 26 * 1G + 4 SFP | 24(PoE ++) | 720W with 1PSU | |

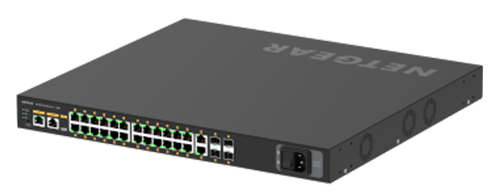

 | M4250-26G4XF-PoE+ (GSM4230PX) | 26 * 1G + 4 SFP+ | 24(PoE +) | 480W | |

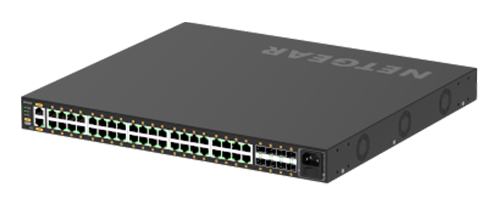

 | M4250-40G8F-PoE+ (GSM4248P) | 40 * 1G + 8 SFP | 40(PoE +) | 480W | |

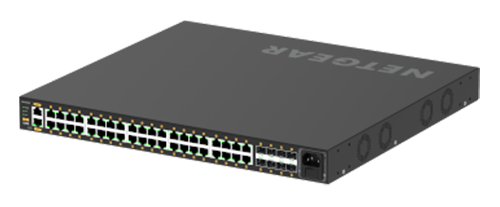

 | M4250-40G8XF-PoE+ (GSM4248PX) | 40 * 1G + 8 SFP+ | 40(PoE +) | 960 W | |

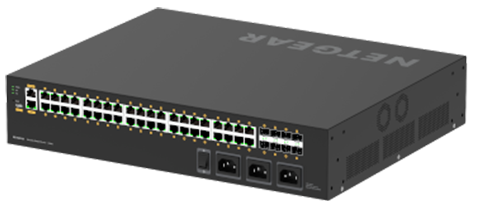

 | M4250-40G8XF-PoE++ (GSM4248UX) | 40 * 1G + 8 SFP+ | 40(PoE ++) | 720W with 1PSU 2880W with 3PSU | |

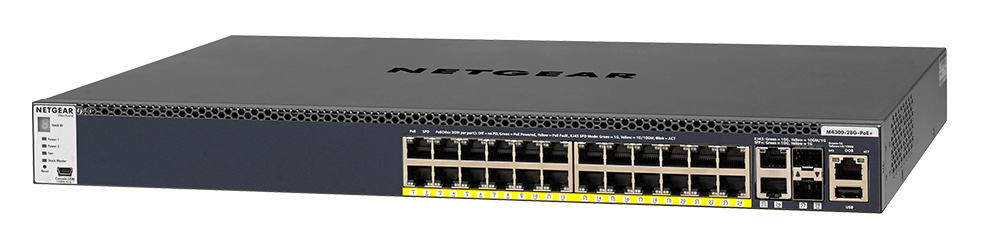

 | M4300-28G-PoE+(GSM4328PA) | 24 x GbE + 2 x 10GbE + 2x 10G SFP+ | 24(PoE+) | 480W with 1PSU(APS550W) up to 720W with 2PSU (EPS mode) | |
 | M4300-28G-PoE+(GSM4328PB) | 24 x GbE + 2 x 10GbE + 2x 10G SFP+ | 24(PoE+) | 630W with 1 PSU(APS1000W,110V AC in) 720W with 1 PSU(APS1000W,220V AC in) up to 720W with 2PSU (RPS mode) | |

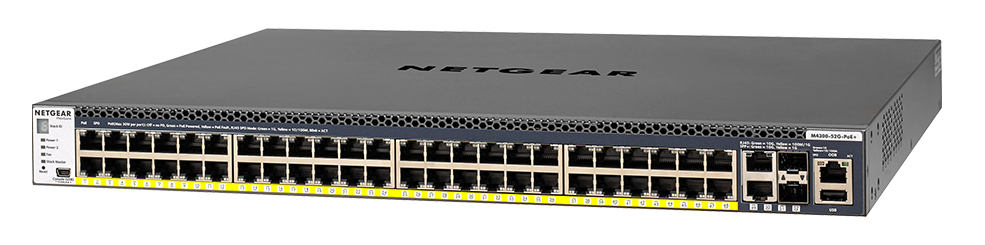

 | M4300-52G-PoE+(GSM4352PA) | 48 x GbE + 2 x 10GbE + 2x 10G SFP+ | 48(PoE+) | 480W with 1PSU(APS550W) up to 720W with 2PSU (EPS mode) | |

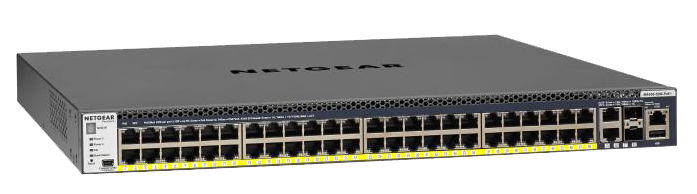

 | M4300-52G-PoE+(GSM4352PB) | 48 x GbE + 2 x 10GbE + 2x 10G SFP+ | 48(PoE+) | 591W with 1 PSU(APS1000W,110V AC in) up to 1010W with 2 PSU(110V, AC in EPS Mode) 860W with 1 PSU(APS1000W,220V AC in) up to 1440W with 2PSU (220V AC in, EPS mode) | |

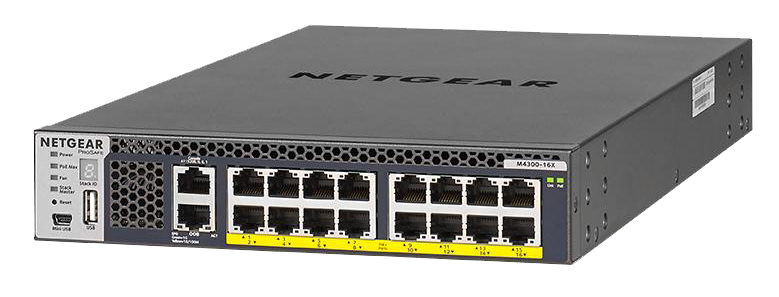

 | M4300-16X(XSM4316PA) | 16 x 10GbE | 16(PoE+) | 199W with APS299W PSU | |

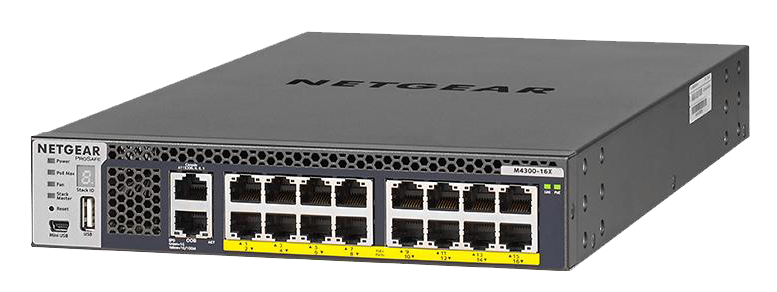

 | M4300-16X(XSM4316PB) | 16 x 10GbE | 16(PoE+) | 500W with APS600W PSU | |

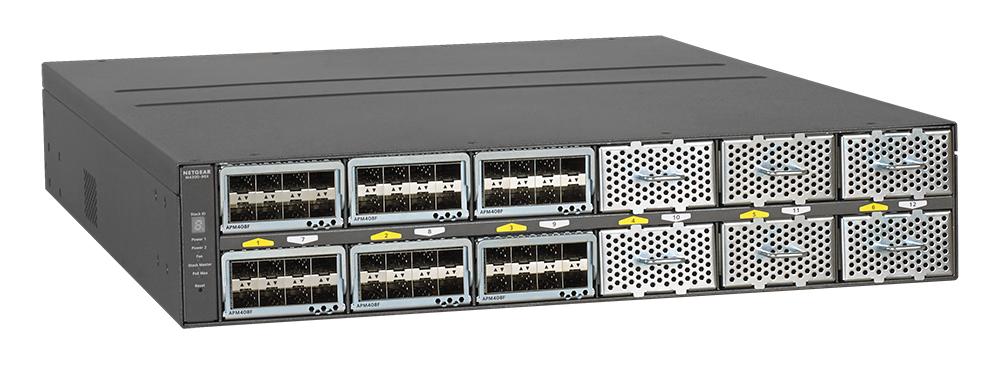

 | M4300-96X PoE Module - APM408P | 8 x 1G/2.5G/5G/10G | 8(PoE+) | up to 30W Per Port | |
 | M4350-24G4XF | 24 x GbE | 24(PoE+) | 內建電源供 648W（基本） | |

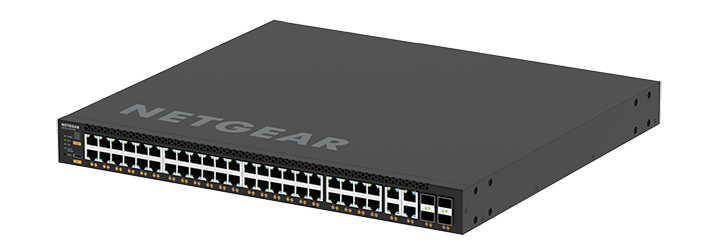

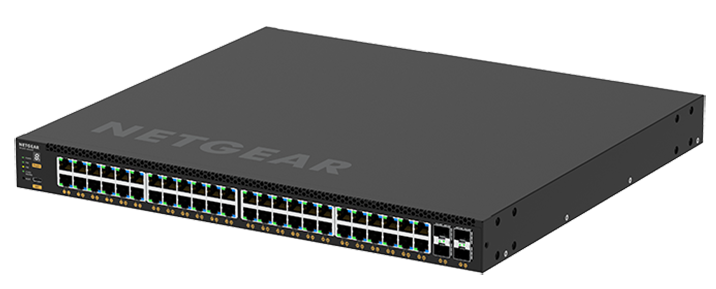

 | M4350-48G4XF | 48 x GbE | 48(PoE+) | 內建電源供 236W（基本） | |
 | M4350-44M4X4V | 44 x 100M/1G/2.5G PoE++ | 48(PoE++) | 內建電源供 194W（基本） | |
 | M4350-24X4V | 24 x 100M / 1G / 2.5G / 5G / 10G | 24(PoE+) | 內建電源供 576W（基本） | |

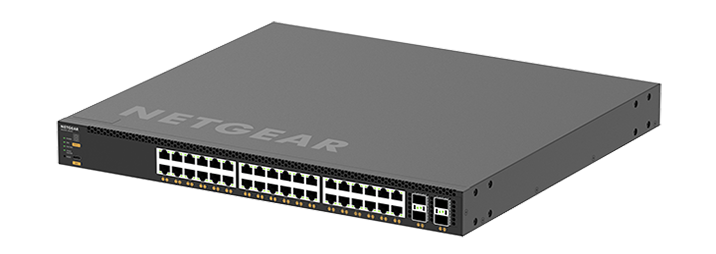

 | M4350-36X4V | 36 x 100M / 1G / 2.5G / 5G / 10G | 36(PoE++) | 內建電源供 280W（基本） | |
 | M4350-24X8F8V | 24 x 100M / 1G / 2.5G / 5G / 10G | 24(PoE++) | 內建電源供 290W（基本） | |

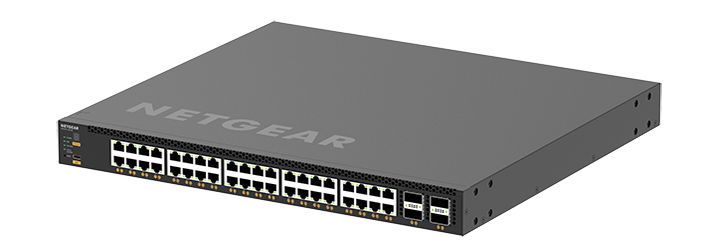

 | M4350-40X4C | 40 x 1G / 2.5G / 5G / 10G | 40(PoE++) | 內建電源供 196W（基本） | |
PRODUCT | DESCRIPTION | ||||
RPS4000v2 | External / Redundant Power Supply (Up to four switches - RPS or EPS mode) | ||||
EPS90W | Power Module for GS108LP / GS108PP / GS116LP / GS116PP | ||||
EPS130W | Power Module for GS108LP / GS108PP / GS116LP / GS116PP | ||||
EPS200W | Power Module for GS116LP / GS116PP | ||||
APS299W | Power Module for M4300-16X | ||||
APS550W | Power Module for M4300-28G-PoE+ / M4300-52G-PoE+ | ||||
APS600W | Power Module for M4300-16X / M4300-96X PoE+ | ||||
APS1000W | Power Module for M4300-28G-PoE+ / M4300-52G-PoE+ / RPS4000 | ||||
APS1200W | Power Module for M4300-96X PoE+ | ||||

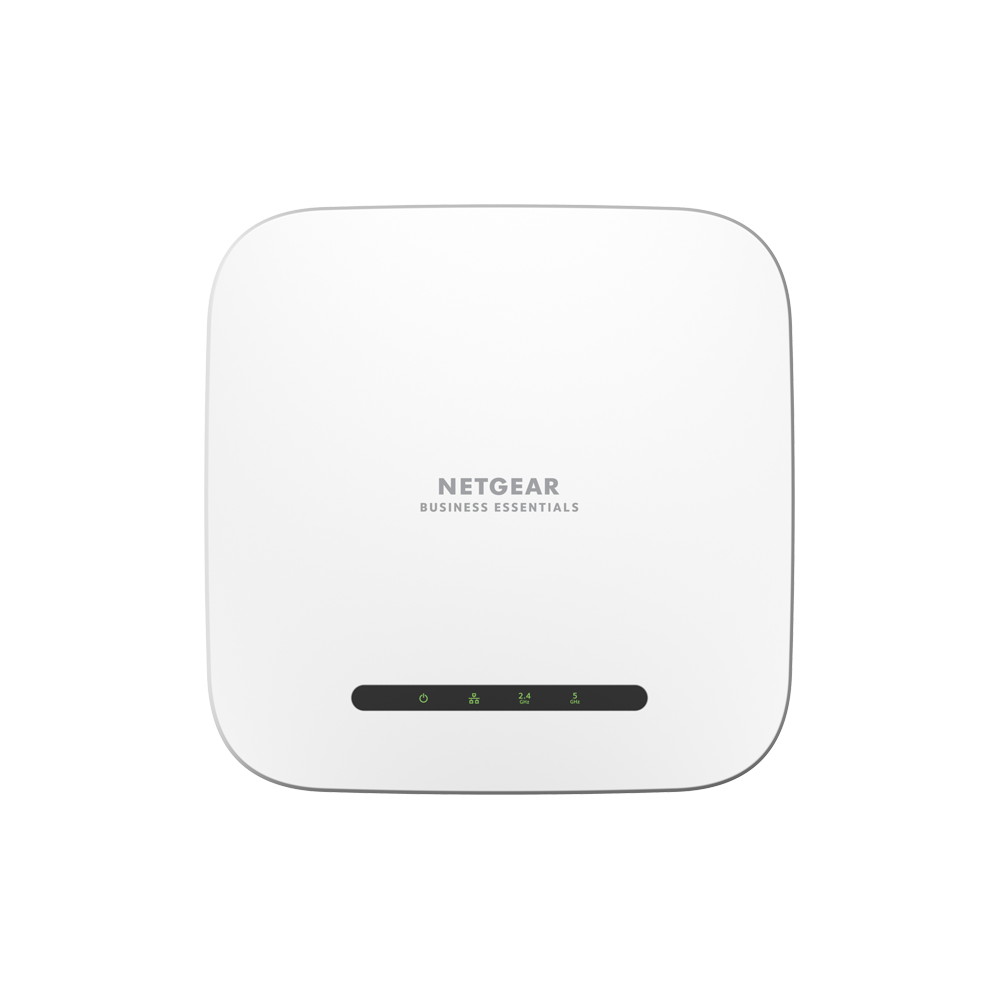

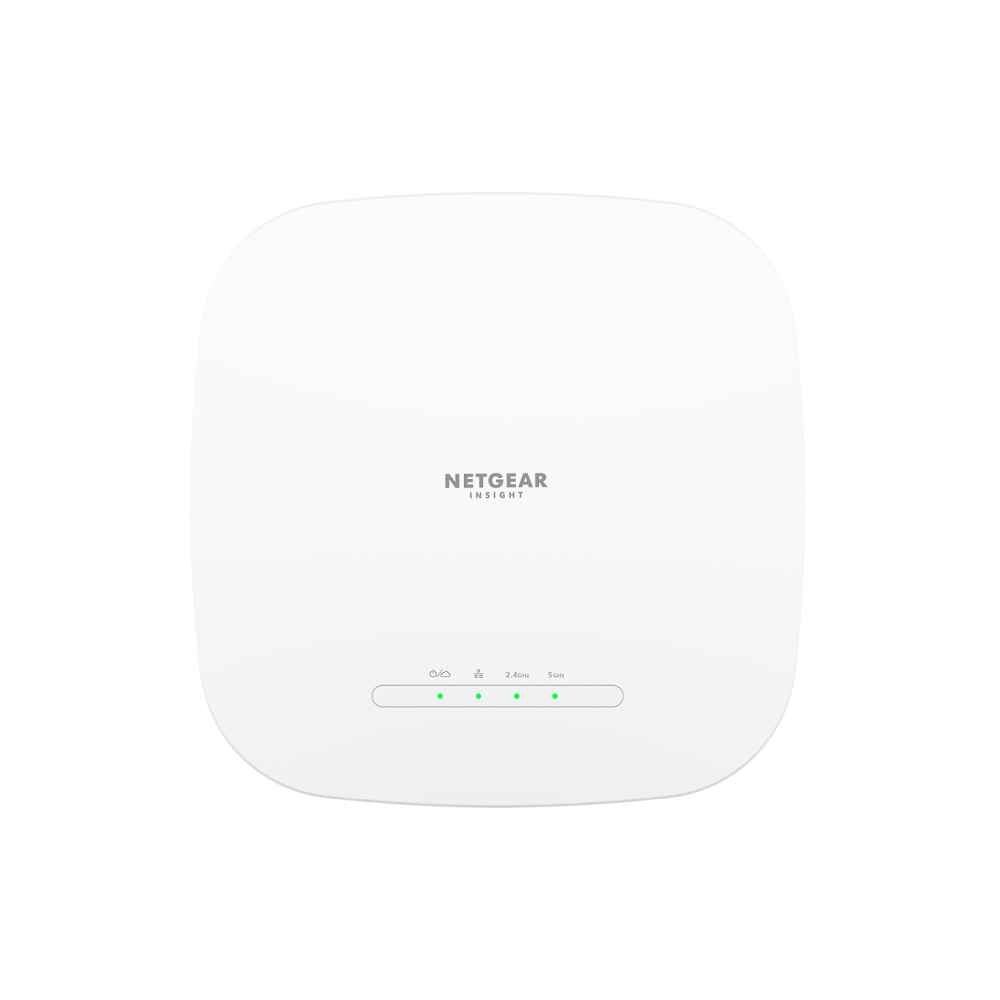

NETGEAR 支援 PoE 受電的無線 AP | ||||
產品分類 | 產品圖 | 型號 | 設備描述 | PoE 耗電量 |

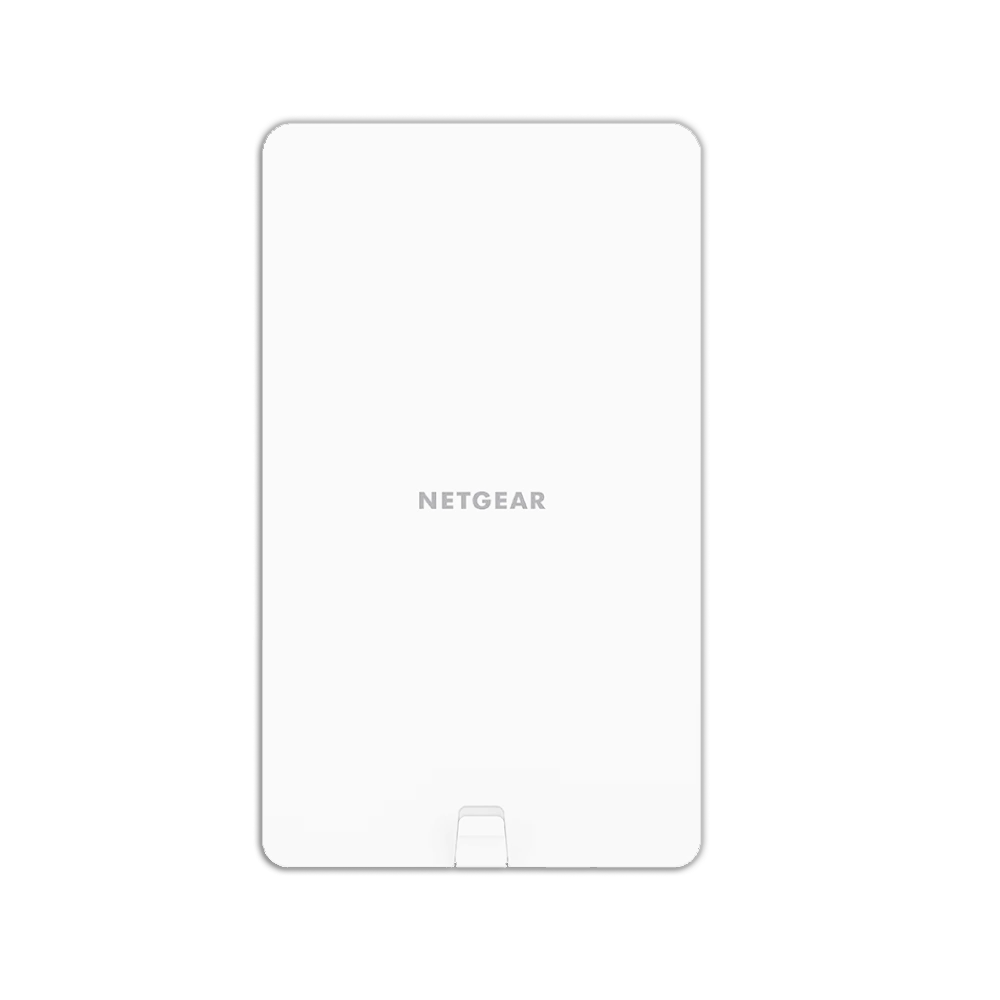

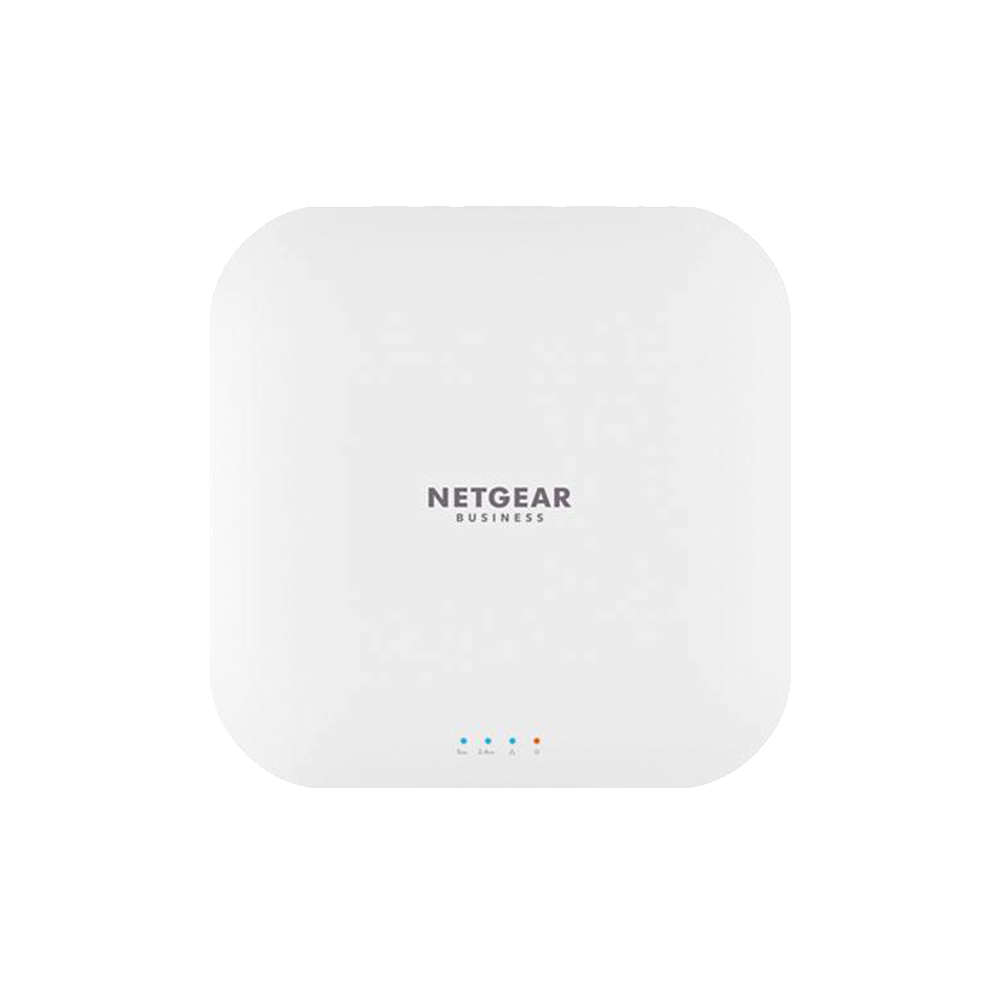

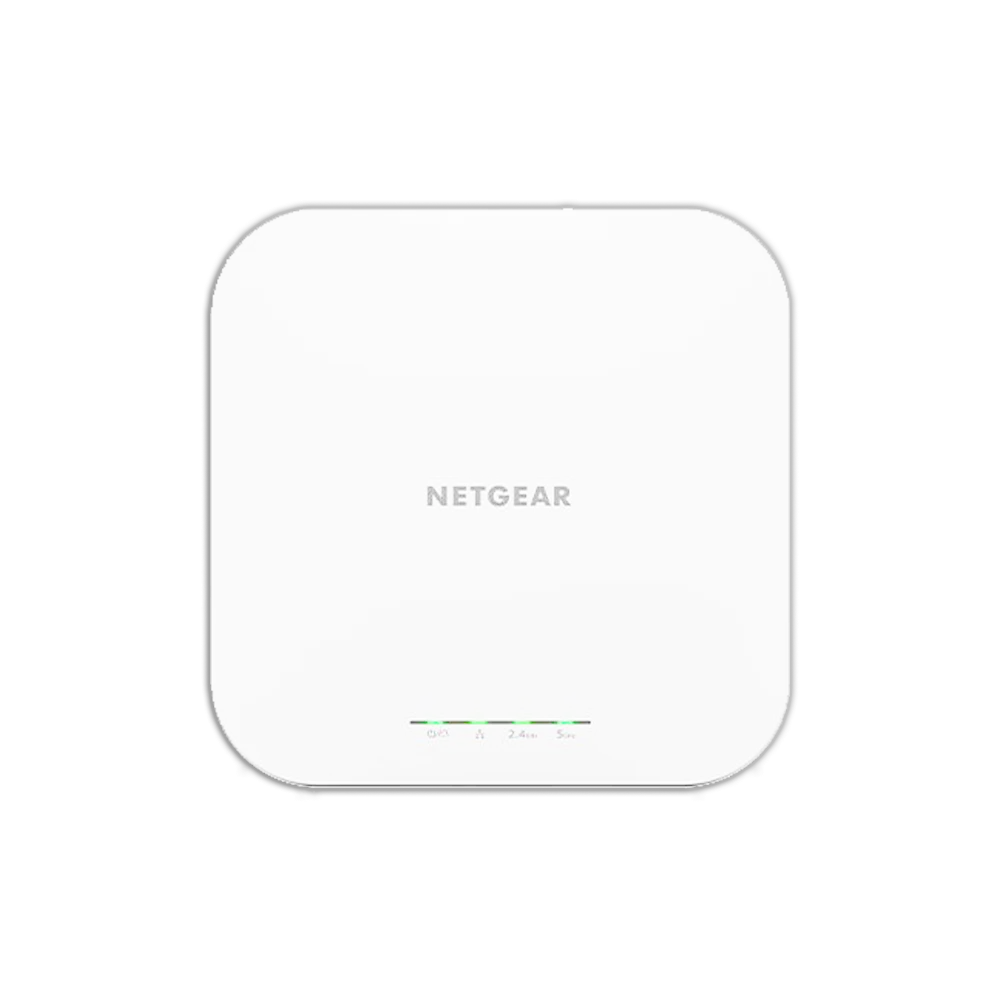

 | AX1800 WiFi 6 雙頻無線AP | 15.3W | ||

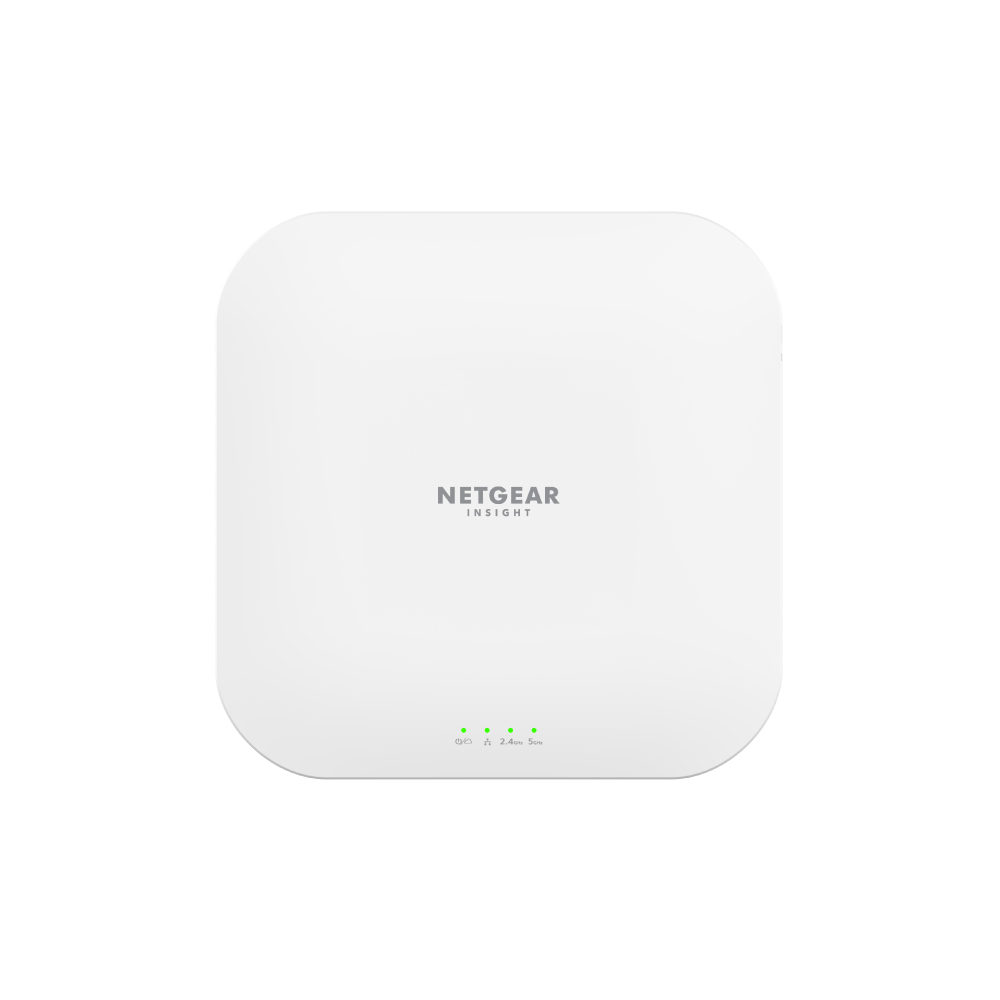

 | AX3600 WiFi 6 雙頻無線AP | 30W | ||
 | AX1800 WiFi 6 雲管理雙頻無線AP | 15.3W | ||
 | AX3000 WiFi 6 雲管理雙頻無線AP | 21.1W | ||
 | AX1800 WiFi 6 雲管理雙頻無線AP | 16.1W | ||
 | AX3600 WiFi 6 雲管理雙頻無線AP | 25.5W | ||
 | AX5400 WiFi 6 雲管理雙頻無線AP | 21.2W | ||

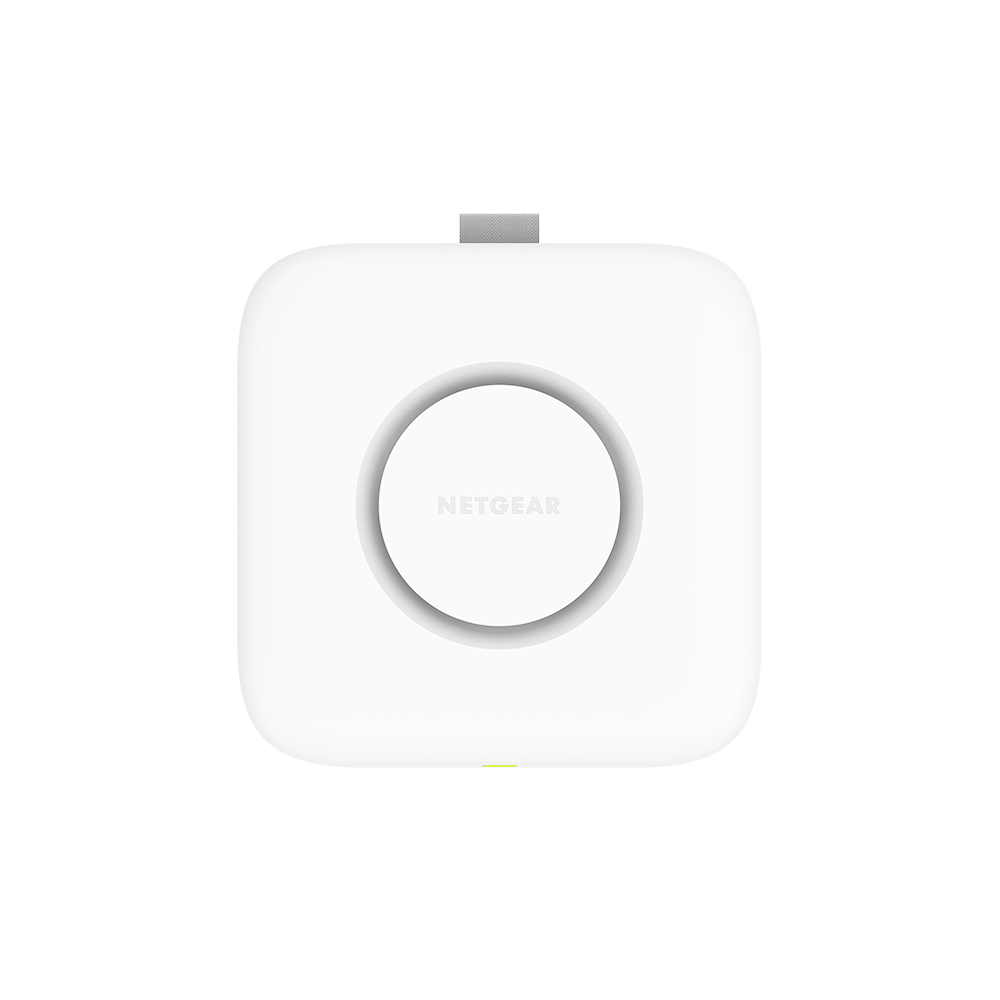

 | BE9400 WiFi 7 雲管理三頻無線AP | 25W 建議搭配 Multi-Giga PoE+交換器 | ||
PoE CLASS 等級 | PSE最小需求瓦數 | 最大PD輸出 | 受電設備(PD) |
1 | 4.0W | 0.44W-3.84W | IP Phone |
2 | 7.0W | 3.84W-6.49W | IP Camera |
3 | 15.4W | 6.49W-12.95W | 影像電話、無線AP |
4 | 30.0W | 12.95W-25.5W | PTZ IP攝影機、雙頻無線AP |
5/6（PoE ++） | 60.0W | 25.5W-51W * | Futures including Building Lighting systems and next Gen VDI Clients |
7/8（PoE ++） | 90.0W | 25.5W-71W * | Futures including Building Lighting systems and next Gen VDI Clients |
如規格有異動，恕不另行通知 ©2021著作權為NETGEAR所有。NETGEAR並保有所有權利。
